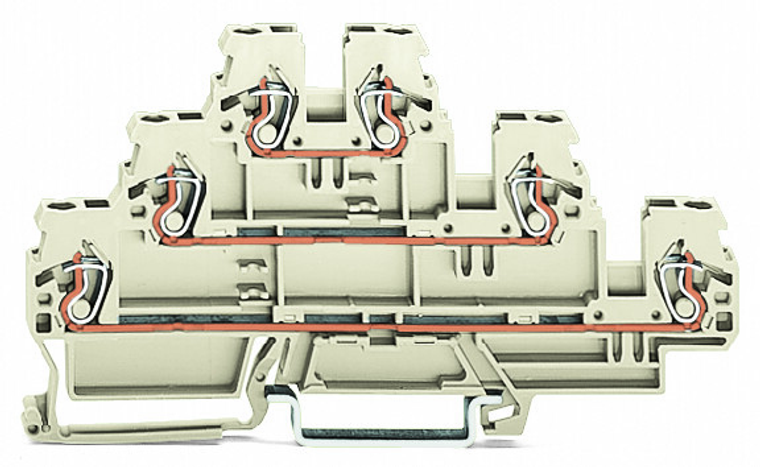

Triple-deck terminal block; Through/through/through terminal block; L/L/L; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP; 2,50 mm²; light gray.
The WAGO 870 X-COM series feed-through terminal block is a triple-deck unit with side marking slots, suitable for Ex e II applications, and features "L/L/L" marking. It is light gray and designed with three feed-through poles, each accommodating two wires (3 clamps + 3 clamps), suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 24A and utilizes CAGE CLAMP spring connections. It is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm, equivalent to model 870951.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 52.5 mm / 2.067 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.08 1.5 mm / 28 14 AWG
- fire load:
- 0.278 MJ
- flammability class per ul94:
- V0
- height:
- 106 mm / 4.173 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 24 A
- rated voltage en ex e ii:
- 420 V
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Max. insulation diameter: 4.4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 17.472 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
