(III / 3) Overvoltage category III / Pollution degree 3
locking lever:
Yes
locking of plug in connection:
Locking lever
marking:
1 2 3
mating force of a plug in connection:
Approx. 20 70 N (depending on pole number)
mismating protection:
Yes
nominal voltage iii 3:
250 V
note on continuous operating temperature:
Insulating parts for temperatures ¤ 105 C
note on mismating protection:
All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
number of locking levers:
2
number of mating cycles:
200, without resistive load
packaging type:
Box
pin spacing:
4.4 mm / 0.173 inch
pole no:
3
processing temperature:
-5 +40 C
protection class:
IP20: IP40 when mated
rated current:
16 A
rated current ul 1977:
14 A
rated surge voltage iii 3:
4 kV
rated voltage ul 1977:
600 V
ratings per:
IEC/EN 60664-1
retention force of a plug in connection:
When locked: > 80 N
unmating force of a plug in connection:
Unlocked: approx. 20 70 N (depending on pole number)

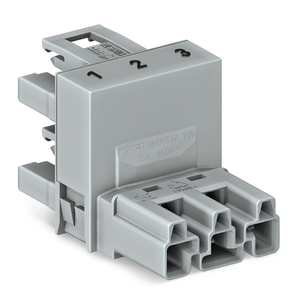

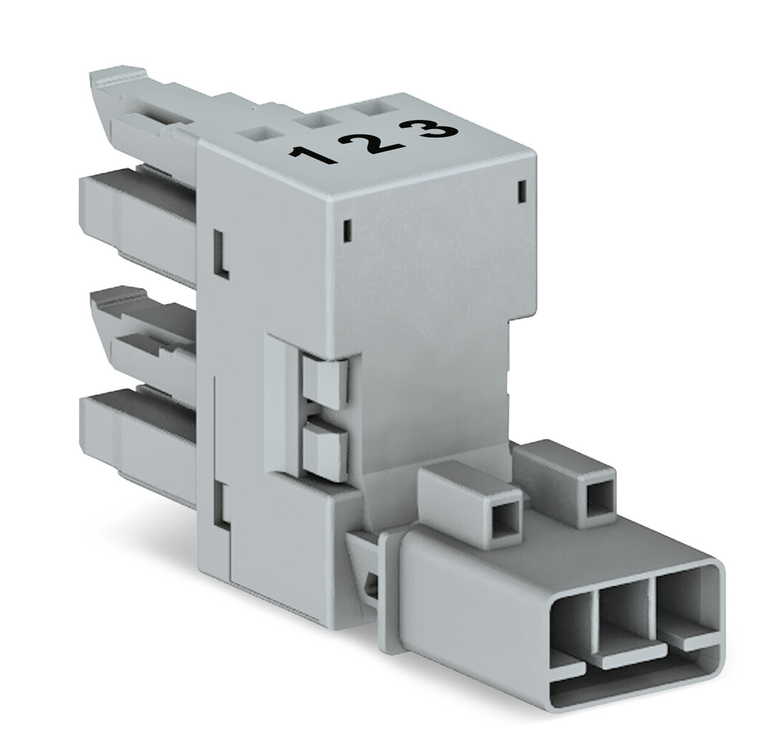

h-distribution connector; unidirectional; 1 x plug / 2 x socket; 3-pole; 100% protected against mismating; pluggable Protected against mismating and...
