Baumer OBDM 12P6930/S35A 10158750
Baumer

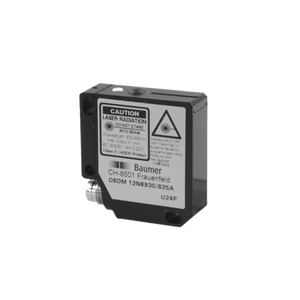

The Baumer OBDM 12P6930/S35A 10158750 is a high-precision laser sensor designed for tolerance analysis, featuring a sensing distance of 16 to 120 mm and a minimum teach-in range of 0.4 mm. It includes a teach-in adjustment for easy setup and both green and red LED indicators for power and output status, respectively. The sensor utilizes a pulsed red laser diode of class 2 with a wavelength of 650 nm and a beam diameter ranging from 0.5 to 0.2 mm. It boasts a rapid response time of less than 1 ms and operates on a voltage supply range of 12 to 28 VDC. The device is highly efficient with a typical current consumption of 40 mA and a maximum of 80 mA, supporting a PNP output circuit with a maximum output current of 100 mA. Safety features include reverse polarity protection and short circuit protection. Its compact, rectangular design measures 12.4 mm in width, 37 mm in height, and 34.5 mm in depth, with a robust die-cast zinc housing and glass front optics. The sensor connects via an M8 4-pin connector and operates within a temperature range of 0 to +50 °C. It is rated IP 67 for protection against dust and water ingress, making it suitable for a variety of industrial applications.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 60 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=5 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
