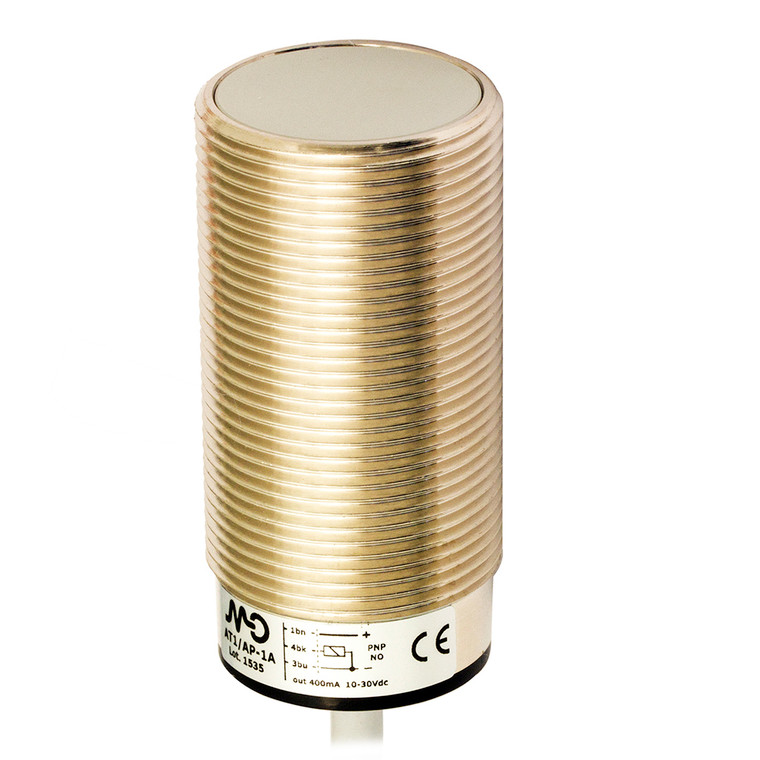

Datasensing AT1/A0-1A Sensors
Datasensing
$85.72
The Datasensing AT1/A0-1A Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a robust M30 shielded design, these sensors offer a nominal sensing distance of 10mm and an operating distance of 0 to 8.1mm, making them ideal for proximity detection tasks. The sensors are equipped with a 2m axial cable for easy installation and connectivity.
Built to withstand challenging environments, the AT1/A0-1A Sensors boast complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They are also designed to handle inductive loads efficiently. The sensors operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current capacity of 3 to 100mA.
The housing is constructed from durable nickel-plated brass, ensuring longevity and resistance to wear and tear. The sensors are equipped with a yellow LED indicator to display output state, and they feature a time delay before availability of ? 50ms. With a switching frequency of 100Hz and a repeat accuracy of < 5%, these sensors deliver consistent performance.
The AT1/A0-1A Sensors are designed to meet rigorous standards, with CE and UR approvals, and EMC compatibility according to IEC 60947-5-2. They are also rated for IP67 mechanical protection, ensuring they are dust-tight and protected against water immersion. Supplied with two M30x1.5 nuts, these sensors are ready for immediate deployment in your industrial setup.
- Nominal sensing distance:
- 10mm
- Operanting distance:
- 0 8,1mm
- Standard target:
- 30x30mm FE360
- Correction Factor:
- copper: 0,35 / aluminium: 0,45 / brass: 0,50 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO
- Switching frequency:
- 100Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- 3... 100mA
- Leakage current:
- ? 0,? 8mA
- Output voltage drop:
- ? 2,8V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 230g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
