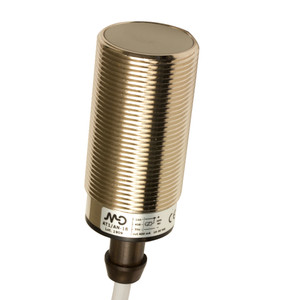

Datasensing AT1/AP-1B86 Sensors

The Datasensing AT1/AP-1B86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a shielded M30 design, these sensors offer a nominal sensing distance of 10mm and an operating distance of 0 to 8.1mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient proximity detection with a switching frequency of 200Hz. Constructed with a durable nickel-plated brass housing and a PBT active head, these sensors are built to withstand harsh environments, with an IP67 mechanical protection rating. The 5m PVC cable connection provides flexibility in installation, while the included short-circuit, reverse polarity, and impulsive overvoltage protection enhance operational safety. The sensors are compatible with standard targets of 30x30mm FE360, with correction factors for different materials such as copper (0.35), aluminium (0.45), brass (0.50), and stainless steel (0.75). They maintain high accuracy with a thermal drift of Sr under 10% and repeat accuracy under 5% at 24V and 23°C ±5°C. Additional features include a yellow LED indicator for output state, a time delay before availability of ?100ms, and a maximum ripple content of ?10%. The sensors are CE and UR approved, ensuring compliance with international standards, and are designed to endure shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27. Supplied with two M30x1.5 nuts, these sensors are ready for immediate integration into your system.
