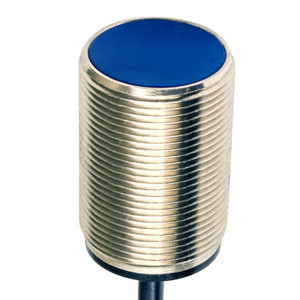

Datasensing AT6/BP-1A Sensors
Datasensing
$61.10
The Datasensing AT6/BP-1A Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a compact M30 shielded short housing, these sensors offer both Normally Open (NO) and Normally Closed (NC) PNP output functions, ensuring versatile operation. With a nominal sensing distance of 10mm and an operating range of 0 to 8.1mm, they are ideal for detecting standard targets of 30x30mm FE360. The sensors are equipped with a 2-meter axial PVC cable for easy installation and connectivity.
Engineered for durability, the AT6/BP-1A sensors boast complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They are also designed to withstand harsh environments, with an IP67 degree of protection and a robust nickel-plated brass housing. The sensors operate efficiently within a temperature range of -25°C to +70°C and are compatible with a wide range of materials, offering correction factors for copper, aluminum, brass, and stainless steel.
Additional features include a high switching frequency of 200Hz, low no-load supply current of ? 20mA, and a load current capacity of ? 400mA. The sensors also feature a yellow LED indicator for output state visibility and are supplied with two M30x1.5 nuts for secure mounting. With CE and cULus approvals, these sensors meet international standards for safety and performance, making them a reliable choice for your sensing needs.
- Nominal sensing distance:
- 10mm
- Operanting distance:
- 0 8,1mm
- Standard target:
- 30x30mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,84
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 165g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
