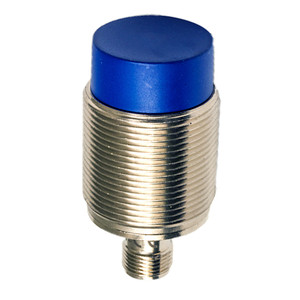

Datasensing AT6/BP-4H Sensors
Datasensing
$81.63
The Datasensing AT6/BP-4H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a robust M30 unshielded short housing, these sensors offer both Normally Open (NO) and Normally Closed (NC) PNP output functions, making them versatile for various applications. With a nominal sensing distance of 20mm and an operating range of 0 to 16.2mm, they are ideal for detecting standard targets of 60x60mm FE360. The sensors are equipped with a yellow LED indicator for output state visibility and provide complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
These sensors are constructed with nickel-plated brass housing and a PBT active head, ensuring durability and resistance to harsh environments. They are designed to operate efficiently within a temperature range of -25°C to +70°C and are compliant with CE and cULus approvals, as well as EMC compatibility with IEC 60947-5-2 standards. The AT6/BP-4H Sensors also feature a high switching frequency of 200Hz, low no-load supply current of ? 20mA, and a load current capacity of ? 400mA, making them suitable for high-speed applications.
The sensors come with an M12 plug connection for easy installation and are supplied with two M30x1.5 nuts for secure mounting. With a degree of protection rated at IP67, they are resistant to dust and water ingress, ensuring reliable performance in demanding industrial environments. Additionally, ATEX models for category 3 are available upon request, catering to specific hazardous area requirements.
- Nominal sensing distance:
- 20mm
- Operanting distance:
- 0 16,2mm
- Standard target:
- 60x60mm FE360
- Correction Factor:
- copper: 0,46 / aluminium: 0,50 / brass: 0,54 / stainless steel: 0,78
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 short case no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 80g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
