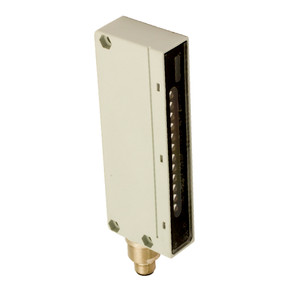

Datasensing BX80B/3P-0H Sensors

The Datasensing BX80B/3P-0H Sensors are designed for precision and reliability in industrial applications. Featuring a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors utilize a microprocessor-based circuit for enhanced performance. The sensitivity adjustment allows for customization to suit specific needs, while the strong cubic housing ensures durability. This special version comes with a metallic enclosure for high-duty use, providing complete protection against electrical damages with an IP67 protection degree. The sensors operate on a voltage range of 12 to 24 VDC, with a nominal sensing distance of 0.5 to 1 meter and a thermal drift of Sr ?10%. The beams are spaced at 6mm, with a minimum detectable object size of 5mm, and feature 12 rays for comprehensive coverage. The output type is PNP with NO/NC functionality, and the response time is a swift 3ms. Additional features include LED indicators for power, alignment, and output state, short-circuit and reverse polarity protection, and resistance to external light interference up to 1,500 lux (incandescent lamp) and 4,500 lux (sunlight). The sensors are built with a PBT housing and a PC active head, with an M12 plug connection for easy integration. They are approved by CE and cULus, ensuring compliance with international standards, and are designed to withstand shocks and vibrations as per IEC EN 60947-5-2. Supplied accessories include two M18x1 nuts, an adjustment key, and a 90 angled bracket for versatile installation options.
