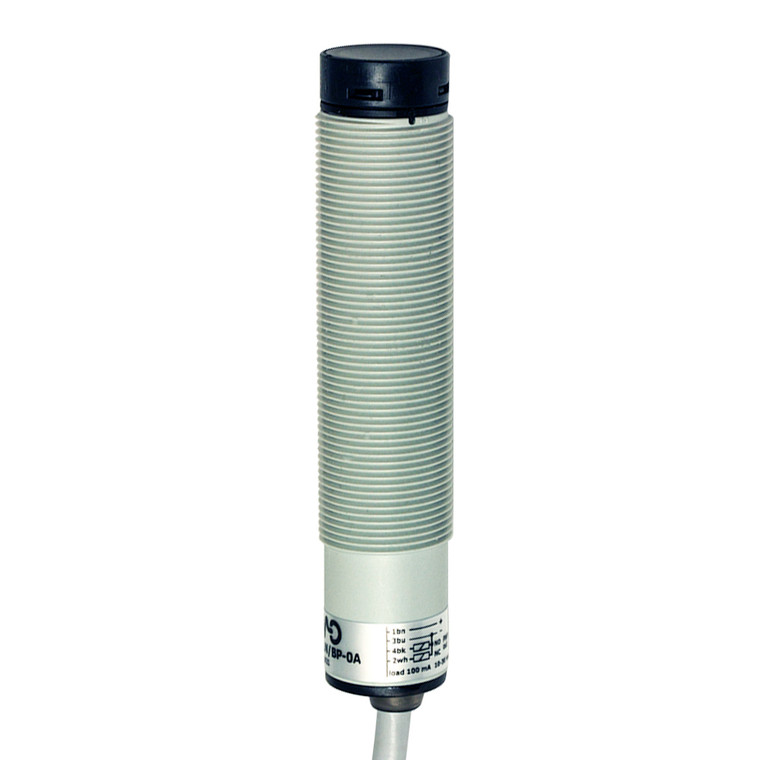

Datasensing FAL4/BN-0A Sensors
Datasensing
$270.63
The Datasensing FAL4/BN-0A Sensors are a versatile and reliable solution for various industrial applications. These sensors feature a complete range of M18 models with a power supply of 10...30 Vdc, offering both axial and radial optics with a flat surface for precise detection. The visible red laser emission models ensure accurate sensing, while the IP67 protection degree guarantees durability in harsh environments. Available in both metallic and plastic housings, these sensors provide flexibility in installation.
With a nominal sensing distance of 300mm and a thermal drift of Sr ?10%, the FAL4/BN-0A Sensors maintain high accuracy with a repeat accuracy of 5%. The sensitivity adjustment is facilitated through a teach-in function, and the sensors operate on a diffuse reflection principle for medium distances up to 600mm. The optic position is axial, and the output type is NPN NO+NC, offering both normally open and normally closed functions.
These sensors boast a high switching frequency of 800Hz and a rapid response time of 625µs, ensuring quick and efficient operation. They are designed to handle a load current of up to 100mA with minimal leakage current and output voltage drop. The sensors are equipped with LED indicators for easy status monitoring and feature comprehensive protection against short circuits, overvoltage, and reverse polarity.
Constructed with a robust PBT/PC housing and glass/PC active head material, the FAL4/BN-0A Sensors are built to withstand shocks and vibrations as per IEC standards. They operate effectively in temperatures ranging from -15°C to +55°C, making them suitable for a wide range of environments. The sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, for convenient installation.
Approved by CE and cULus, these sensors meet EMC compatibility standards and offer reliable performance with minimal interference from external light sources. Whether used in automation, manufacturing, or other industrial settings, the Datasensing FAL4/BN-0A Sensors deliver exceptional performance and reliability.
- Nominal sensing distance:
- 300mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- (Focalized 100mm) white target 90% Kodak 200x200mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 1Nm
- Operating temperature:
- -15°C...+ 55°C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
