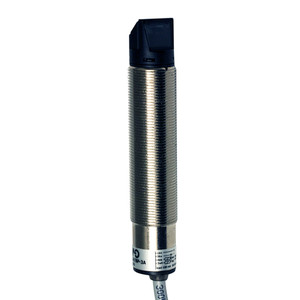

The Datasensing FALN/BP-3A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° laser retroreflective polarized design, these sensors offer a nominal sensing distance of 20 meters with adjustable sensitivity through a convenient teach-in function. The robust M18 sensors operate on a 10...30 VDC power supply and are equipped with both axial and radial optics with a flat surface for versatile application.
Constructed with a durable nickel-plated brass housing and a 2-meter PVC cable, these sensors are built to withstand harsh environments, boasting an IP67 protection rating. The sensors are equipped with PNP NO+NC output types, ensuring flexibility in various industrial applications. With a high switching frequency of 800Hz and a rapid response time of 625µs, they are ideal for fast-paced operations.
The FALN/BP-3A Sensors are designed to resist electrical damages, featuring short-circuit, overvoltage, and reverse polarity protection. They are also CE and cULus approved, ensuring compliance with international standards. The sensors are equipped with LED indicators for easy status monitoring and are capable of operating in temperatures ranging from -15°C to +55°C.
Supplied with M18 x 1 nuts and a screwdriver, these sensors are easy to install and maintain, making them a reliable choice for any industrial sensing application.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 110g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
