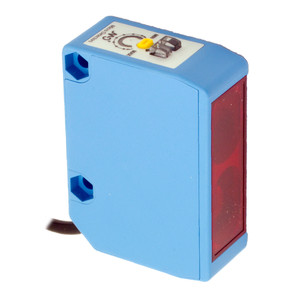

Datasensing FGRHD/DT-0A Sensors

The Datasensing FGRHD/DT-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a compact cubic design, these sensors offer adjustable emitter and receiver settings with a nominal sensing distance of 50 meters. The sensitivity can be finely tuned using a potentiometer with a two-turn position indicator, ensuring optimal performance in various applications. These sensors are equipped with a cable output or a revolving connector, providing flexibility in installation. They support both NPN and PNP output for DC models and SPDT voltage-free relay output for AC models, with selectable LO/DO output status. The sensors are fully protected against electrical damages, including short-circuit and reverse polarity protection, and are designed to withstand impulsive overvoltage. The FGRHD/DT-0A Sensors feature background suppression models with ranges of 310 mm and 600 mm, and reflex polarized sensitivity adjustment up to 12 meters. The emitter and receiver boast a maximum detecting range of 50 meters, with a double multifunction LED indicator for output state and pointing. Constructed with durable ABS housing and PMMA active head material, these sensors are built to endure harsh environments, with an operating temperature range of -25°C to +55°C and an IP67 degree of protection. They are CE and UR approved, ensuring compliance with international standards. The sensors come with a 2-meter PVC cable and a mounting bracket for easy installation, making them a versatile choice for industrial applications.
