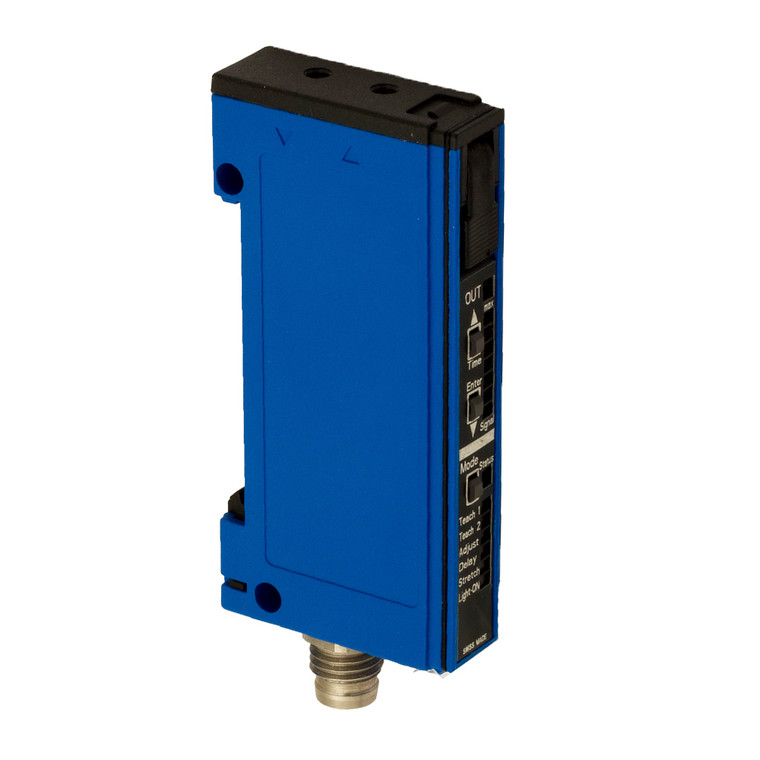

Datasensing FX4/0P-0F Sensors

The Datasensing FX4/0P-0F Sensors are advanced optical fibre amplifiers designed for precise and reliable performance in industrial applications. These sensors are ideal for DIN-rail mounting, conforming to DIN/EN 50022 standards, and feature a compact 10 mm housing width, making them perfect for stacking in tight spaces. Equipped with a PNP teach-in connection and an M8 4-pin connector, the FX4/0P-0F offers versatile connectivity options. The sensor operates on a 10 to 30V DC power supply and provides a high switching frequency of up to 1.5 kHz, ensuring rapid response times of just 333µs. The FX4 model includes a teach-in function for distance setting, with additional manual fine adjustment capabilities, allowing for a large setting range of 20 to 200 mm. It also features adjustable pulse delay and stretching, enhancing its adaptability to various operational requirements. The sensor's output type is PNP with light/dark selectable functions, and it boasts a low no-load supply current of ? 25mA and a load current capacity of ? 200mA. With a robust design, the FX4/0P-0F is protected against short-circuits and reverse polarity, and it can withstand external light interference up to 10,000 lux from sunlight. Constructed from durable PBTP material, the sensor is rated IP64 for mechanical protection, ensuring reliable operation in challenging environments with operating temperatures ranging from -25°C to +55°C. The FX4/0P-0F is CE approved and EMC compatible with EN 60947-5-2 standards, making it a dependable choice for industrial sensing applications.
