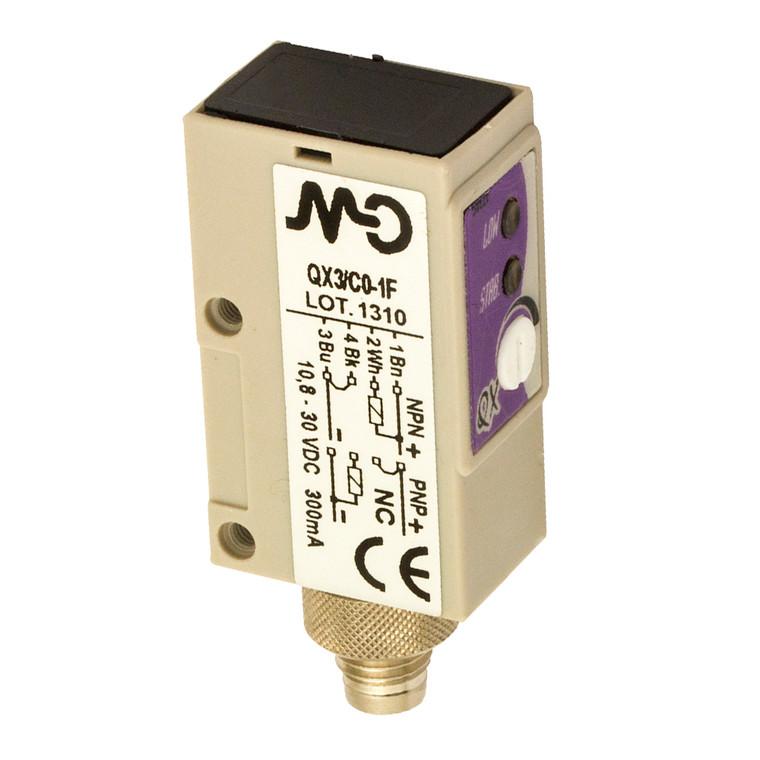

Datasensing QXP/C0-1F Sensors
Datasensing
$183.97
The Datasensing QXP/C0-1F Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring a polarized axial optic connection with a nominal sensing distance of 3 meters, these sensors are equipped with both axial and right-angle optics for versatile installation options. The sensors utilize visible red light in retro-reflective, polarized, and through-beam models, ensuring long-distance capability and a precision beam for accurate detection.
With a fast response time of 0.75-0.5 ms and a switching frequency of 750Hz, the QXP/C0-1F Sensors offer quick and efficient performance. The NPN-PNP selectable output provides flexibility in integration, while the high output current of over 300 mA ensures robust operation. The sensors are equipped with two LED indicators for threshold and signal margin, enhancing operational visibility.
Built to withstand challenging environments, these sensors feature short-circuit and reverse polarity protection, an IP65 degree of protection, and are compliant with CE and EMC standards. The housing is made from durable ABS material, with an acrylic active head, and the sensors are designed to operate in temperatures ranging from -25°C to +70°C without freezing. Supplied with ST70 mounting brackets and screws, the Datasensing QXP/C0-1F Sensors are ready for seamless installation and reliable performance in demanding settings.
- Nominal sensing distance:
- 3m
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Optic position:
- Axial
- Output type:
- NPN/PNP Selectable NC
- Output Function:
- NC
- Switching frequency:
- 750Hz
- Response time:
- 666µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?300mA
- Leakage current:
- ? 100?A @ 30Vdc
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red(output status) , Geen (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Dimensions:
- 15x23x72
- Weight:
- 70g
- Connections:
- M8 plug 4pin
- Active Head Material:
- Acrylic
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Material:
- ABS
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST70 mounting brakets and screws
- Dimensions:
- 15x23x40
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
