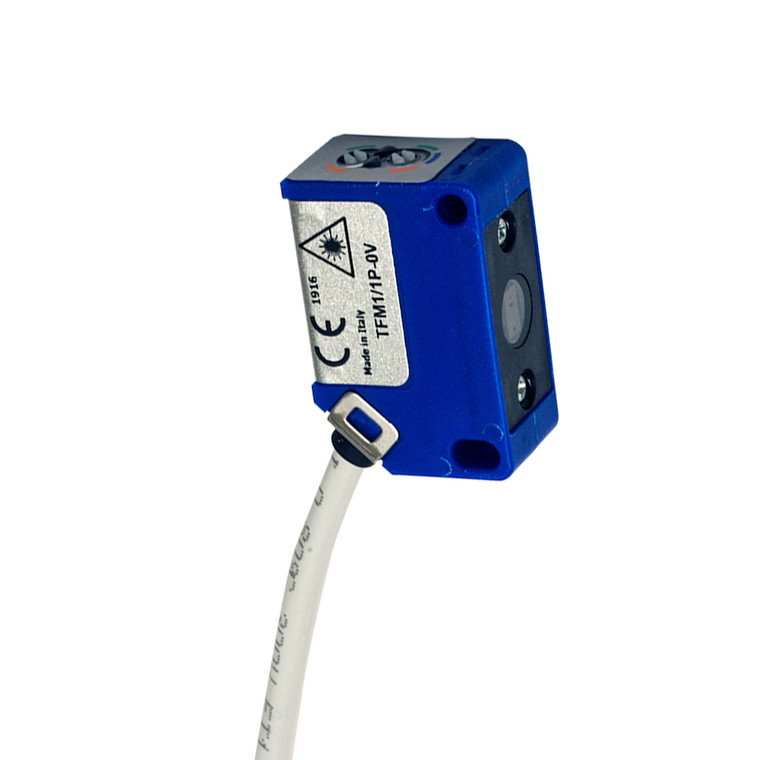

Datasensing TFM1/1P-0V Sensors
Datasensing
$172.98
The Datasensing TFM1/1P-0V Sensors are advanced time of flight miniaturized sensors designed for precision and reliability. With a nominal sensing distance of 180mm and a wide angle divergent spot dimension of 25°, these sensors offer a resolution of 1mm, ensuring accurate detection. The sensors feature a PNP output with a switching frequency programmable from 10 Hz to 80 Hz, making them versatile for various applications. They are equipped with two digital outputs (Lon) and provide complete protection against electrical damages with an IP67 protection degree.
The sensors emit an infrared laser (class 1) and have a sensitivity adjustment via a trimmer, with a hysteresis of ± 4mm. They operate on a voltage range of 19.2 to 28.8VDC, with a no-load supply current of ? 40mA and a load current of ? 50mA. The output voltage drop is ? 2V at a load current of 50mA, and they feature short-circuit and reverse polarity protection.
Constructed with a durable PA66 + ABS housing and a glass active head, these sensors are designed to withstand harsh environments, with an operating temperature range of -10°C to +50°C and storage temperature range of -30°C to +90°C. The sensors are equipped with LED indicators for easy status monitoring: green for run, red for out of operating range, and yellow for status. They come with a 200mm PVC cable and M12 plug for easy connectivity.
Compliant with CE and EMC standards (EN 60947-5-2), the Datasensing TFM1/1P-0V Sensors are ideal for applications requiring high precision and reliability in challenging conditions.
- Nominal sensing distance:
- 180mm
- Spot dimension:
- Divergent (25°) wide angle
- Resolution:
- 1mm
- Sensitivity adjustment:
- Trimmer
- Hysteresis:
- ± 4mm
- Function Principle:
- Time of Flight
- Notes:
- (white 90% - grey 18% - black 6%)
- Output type:
- 2 x PNP LO
- Output Function:
- LO
- Switching frequency:
- ? 10Hz
- Response time:
- 50ms
- Operating Voltage:
- 19,2 28,8VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?50mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- ?2V@Iload=50mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (Run), Red (out of the operating range), Yellow (status)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Infrared
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- PA66 + ABS
- Connections:
- 200mm PVC cable + M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -10°C + 50°C
- Storage temperature:
- 30°C +90°C
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 50°C (Without freeze)
- Mechanical Protection:
- IP67
