Linergy Terminals blocks

Linergy Terminals blocks

  • Schneider Electric NSYTRV352 Screw Terminal, Feed Through, 2 Points, Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV352 Screw Terminal, Feed Through, 2 Points, Pack of 50

    Schneider Electric

    $385.00
    Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX...
    SKU:
    NSYTRV352
    Height:
    65.7 mm
    Toxic Heavy Metal Free:
    Yes
    Rohs Exemption Information:
    Yes
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Environmental Disclosure:
    ENVPEP2309018EN
    Eu Rohs Directive:
    Compliant
    Flame Retardance:
    V0 0.8 mm UL 94
    Dielectric Strength:
    1000 V IEC 60243-1
    Cable Cross Section:
    1.5-50 mm², flexible without cable end || 1.5-50 mm², solid
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Product Compatibility:
    Spacial enclosures
    Wire Stripping Length:
    18 mm
    Halogen Content Performance:
    Halogen free plastic parts product
    [Ue] Rated Operational Voltage:
    1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
    Product Certifications:
    ATEX || IEC-Ex || VDE || EAC || GL || CSA || cURus
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Quantity Per Set:
    set of 50
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Material:
    polyamide 6/6: insulating case
    Length:
    60.2 mm
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Mercury Free:
    Yes
    Warranty:
    18 months
    Product Name:
    Linergy TR
    Dielectric Constant:
    3.7 at 1 MHz
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Device Short Name:
    TRV
    Tightening Torque:
    3.2-3.7 N.m
    Terminal Block Type:
    passthrough
    Number Of Measurement Input:
    2
    Circularity Profile:
    N/A
    Reach Free Of Svhc:
    Yes
    Color:
    Gray
    Product Or Component Type:
    terminal block
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Number Of Terminals:
    2
    Nominal Cross Section:
    35 mm²
    Line Rated Current:
    125-125 A EN/IEC 60947-7-1 || 150-150 A cURus || 150-150 A CSA || 126-126 A ATEX Exe II Ex II 2 GD
    Mounting Mode:
    clip-on
    Connection Position:
    sideways
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Net Weight:
    61 g
    Sustainable Offer Status:
    Green Premium product
    Range:
    Linergy
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Terminal Block Level:
    1
    Width:
    16 mm
    Catalog:
    View
    Datasheet:
    View
    $385.00
    Add to Cart Quick view

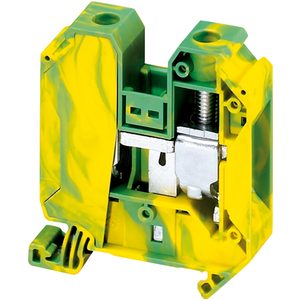

  • Schneider Electric NSYTRV352PE Screw Terminal, Protective Earth, 2 Poin Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV352PE Screw Terminal, Protective Earth, 2 Poin Pack of 50

    Schneider Electric

    $660.00
    Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 35 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be...
    SKU:
    NSYTRV352PE
    Warranty:
    18 months
    Eu Rohs Directive:
    Compliant
    Dielectric Constant:
    3.7 at 1 MHz
    Product Compatibility:
    Spacial enclosures
    Connection Position:
    sideways
    Line Rated Current:
    125-125 A EN/IEC 60947-7-1
    Height:
    60.2 mm
    Wire Stripping Length:
    18 mm
    Dielectric Strength:
    1000 V IEC 60243-1
    Environmental Disclosure:
    ENVPEP2309022EN
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Circularity Profile:
    N/A
    Reach Free Of Svhc:
    Yes
    Number Of Measurement Input:
    2
    Terminal Block Level:
    1
    Color:
    green-yellow
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Product Certifications:
    VDE || EAC || CSA || cURus || IEC-Ex || GL || ATEX
    Length:
    65.7 mm
    Halogen Content Performance:
    Halogen free plastic parts product
    Cable Cross Section:
    1.5-50 mm², solid || 2.5-35 mm², flexible with cable end || 1.5-50 mm², flexible without cable end
    Quantity Per Set:
    set of 50
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Mercury Free:
    Yes
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Mounting Mode:
    clip-on
    Product Or Component Type:
    terminal block
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Net Weight:
    85.79 g
    Nominal Cross Section:
    35 mm²
    Product Name:
    Linergy TR
    Device Short Name:
    TRV
    Rohs Exemption Information:
    Yes
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Terminal Block Type:
    protective earth
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Range:
    Linergy
    Tightening Torque:
    3.2-3.7 N.m
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Width:
    16 mm
    Material:
    polyamide 6/6: insulating case
    Flame Retardance:
    V0 0.8 mm UL 94
    Number Of Terminals:
    2
    Sustainable Offer Status:
    Green Premium product
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Toxic Heavy Metal Free:
    Yes
    Catalog:
    View
    Datasheet:
    View
    $660.00
    Add to Cart Quick view

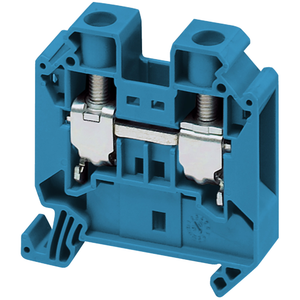

  • Schneider Electric NSYTRV162BL Screw Terminal, Feed Through, 2 Points, Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV162BL Screw Terminal, Feed Through, 2 Points, Pack of 50

    Schneider Electric

    $270.00
    Terminal block, Linergy TR, blue, 16mm2, passthrough, 2 points, set of 10
    SKU:
    NSYTRV162BL
    Wire Stripping Length:
    14 mm
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Device Short Name:
    TRV
    Length:
    55.5 mm
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Dielectric Constant:
    3.7 at 1 MHz
    Net Weight:
    30 g
    Color:
    Blue
    Number Of Measurement Input:
    2
    Product Compatibility:
    Spacial enclosures
    Rohs Exemption Information:
    Yes
    Material:
    polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    Width:
    12.2 mm
    Eu Rohs Directive:
    Compliant
    Connection Position:
    sideways
    Halogen Content Performance:
    Halogen free plastic parts product
    Environmental Disclosure:
    ENVPEP2309018EN
    Product Certifications:
    ATEX || DNV || VDE || EAC || cURus || CSA || GL || LR || IEC-Ex
    Circularity Profile:
    N/A
    Mounting Mode:
    clip-on
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Reach Free Of Svhc:
    Yes
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Product Or Component Type:
    terminal block
    Terminal Block Type:
    passthrough
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Connections - Terminals:
    1 x screw terminal upstream M5) || 1 x screw terminal downstream M5)
    Accessory / Separate Part Category:
    connection accessory
    Toxic Heavy Metal Free:
    Yes
    Dielectric Strength:
    1000 V IEC 60243-1
    Warranty:
    18 months
    [Ue] Rated Operational Voltage:
    1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Number Of Terminals:
    2
    Line Rated Current:
    76-76 A EN/IEC 60947-7-1 || 85-85 A cURus || 85-85 A CSA || 73-73 A ATEX Exe II Ex II 2 GD
    Flame Retardance:
    V0 0.8 mm UL 94
    Nominal Cross Section:
    16 mm²
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Terminal Block Level:
    1
    Range:
    Linergy
    Tightening Torque:
    2.5-3 N.m
    Quantity Per Set:
    set of 50
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Height:
    55 mm
    Mercury Free:
    Yes
    Cable Cross Section:
    0.2-10 mm², flexible with cable end || 0.2-16 mm², solid with cable end || 1.5-25 mm², solid without cable end || 1.5-25 mm², flexible without cable end
    Sustainable Offer Status:
    Green Premium product
    Product Name:
    Linergy TR
    Catalog:
    View
    Datasheet:
    View
    $270.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV26T Screw Terminal,3 Level, 6Pts,2,5Mma Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV26T Screw Terminal,3 Level, 6Pts,2,5Mma Pack of 50

    Schneider Electric

    $430.00
    Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 500V conforming to EN/IEC 60947-7-1. The rated current is 20A conforming to EN/IEC 60947-7-1...
    SKU:
    NSYTRV26T
    Tightening Torque:
    0.5-0.6 N.m
    China Rohs Regulation:
    Product out of China RoHS scope. Substance declaration for your information.
    Rohs Exemption Information:
    Yes
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Product Compatibility:
    Spacial enclosures
    Product Name:
    Linergy TR
    Material:
    polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Quantity Per Set:
    set of 50
    Line Rated Current:
    20-20 A EN/IEC 60947-7-1
    Connection Position:
    sideways
    Length:
    90 mm
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Terminal Block Type:
    passthrough
    Cable Cross Section:
    0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end
    Color:
    Gray
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Product Or Component Type:
    terminal block
    Number Of Terminals:
    2
    Flame Retardance:
    V0 0.8 mm UL 94
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Circularity Profile:
    N/A
    Mercury Free:
    Yes
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Product Certifications:
    EAC || CSA || cURus
    Environmental Disclosure:
    ENVPEP2309018EN
    Net Weight:
    25.1 g
    Eu Rohs Directive:
    Compliant with Exemptions
    Connections - Terminals:
    1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
    Halogen Content Performance:
    Halogen free plastic parts product
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Accessory / Separate Part Category:
    connection accessory
    [Ue] Rated Operational Voltage:
    500 V EN/IEC 60947-7-1
    Dielectric Constant:
    3.7 at 1 MHz
    Range:
    Linergy
    Number Of Measurement Input:
    3
    Sustainable Offer Status:
    Green Premium product
    Warranty:
    18 months
    Nominal Cross Section:
    2.5 mm²
    Terminal Block Level:
    3
    Mounting Mode:
    clip-on
    Wire Stripping Length:
    9 mm
    Width:
    5.2 mm
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Dielectric Strength:
    1000 V IEC 60243-1
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Height:
    77.5 mm
    Device Short Name:
    TRV
    Catalog:
    View
    Datasheet:
    View
    $430.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV42SF6 Screw Terminal, Fused, For 6,3X32Mm Cart
    Add to Cart
    Quick view

    Schneider Electric NSYTRV42SF6 Screw Terminal, Fused, For 6,3X32Mm Cart

    Schneider Electric

    $14.40
    The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a...
    SKU:
    NSYTRV42SF6
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Eu Rohs Directive:
    Compliant
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Surface Resistance:
    1000 MOhm IEC 60093 || 1000 MOhm VDE 0303-T30
    Number Of Terminals:
    2
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Color:
    Black
    Width:
    10.2 mm
    Line Rated Current:
    10-10 A EN/IEC 60947-7-1 || 10-10 A cURus || 10-10 A CSA
    Circularity Profile:
    N/A
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Resistivity:
    10000 Ω.cm IEC 60093 || 10000 Ω.cm VDE 0303-T30
    Terminal Block Level:
    1
    Material:
    polyamide 6/6: insulating case
    Mercury Free:
    Yes
    Quantity Per Set:
    set of 50
    Reach Free Of Svhc:
    Yes
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Terminal Block Type:
    fused disconnect
    Wire Stripping Length:
    9 mm
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Cable Cross Section:
    0.2-4 mm², flexible without cable end || 0.2-4 mm², flexible with cable end || 0.5-16 mm², solid with cable end
    Dielectric Constant:
    3.7 at 1 MHz
    Fuse Size:
    6.3 x 32 mm
    Device Short Name:
    TRV
    Product Certifications:
    CSA || EAC || cURus
    Tightening Torque:
    0.6-0.8 N.m
    Dielectric Strength:
    1000 V IEC 60243-1
    Height:
    60.5 mm
    Toxic Heavy Metal Free:
    Yes
    [Ue] Rated Operational Voltage:
    500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
    Product Compatibility:
    Spacial enclosures
    Sustainable Offer Status:
    Green Premium product
    Net Weight:
    34.2 g
    Number Of Measurement Input:
    0
    Flame Retardance:
    V0 0.8 mm UL 94
    Halogen Content Performance:
    Halogen free plastic parts product
    Range:
    Linergy
    Device Application:
    protection
    Product Name:
    Linergy TR
    Length:
    79 mm
    Connection Position:
    sideways
    Warranty:
    18 months
    Rohs Exemption Information:
    Yes
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Product Or Component Type:
    terminal block
    Mounting Mode:
    clip-on
    Nominal Cross Section:
    16 mm²
    Environmental Disclosure:
    ENVPEP2309018EN
    Catalog:
    View
    Datasheet:
    View
    $14.40
    Add to Cart Quick view
  • Schneider Electric NSYTRV162PE Screw Terminal, Protective Earth, 2 Poin Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV162PE Screw Terminal, Protective Earth, 2 Poin Pack of 50

    Schneider Electric

    $465.00
    Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 16 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be...
    SKU:
    NSYTRV162PE
    Width:
    12.2 mm
    Warranty:
    18 months
    Environmental Disclosure:
    ENVPEP2309022EN
    Quantity Per Set:
    set of 50
    Dielectric Strength:
    1000 V IEC 60243-1
    Color:
    green-yellow
    Product Or Component Type:
    terminal block
    Line Rated Current:
    101-101 A EN/IEC 60947-7-1
    Flame Retardance:
    V0 0.8 mm UL 94
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Device Short Name:
    TRV
    Dielectric Constant:
    3.7 at 1 MHz
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Circularity Profile:
    N/A
    Eu Rohs Directive:
    Compliant
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Toxic Heavy Metal Free:
    Yes
    Terminal Block Type:
    protective earth
    Nominal Cross Section:
    16 mm²
    Net Weight:
    46.85 g
    Product Compatibility:
    Spacial enclosures
    Number Of Terminals:
    2
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Connection Position:
    sideways
    Product Name:
    Linergy TR
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Rohs Exemption Information:
    Yes
    Range:
    Linergy
    Halogen Content Performance:
    Halogen free plastic parts product
    Length:
    55.5 mm
    Height:
    55 mm
    Number Of Measurement Input:
    2
    Mounting Mode:
    clip-on
    Mercury Free:
    Yes
    Reach Free Of Svhc:
    Yes
    Terminal Block Level:
    1
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Material:
    polyamide 6/6: insulating case
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Cable Cross Section:
    1.5-25 mm², solid || 1-16 mm², flexible with cable end || 1.5-25 mm², flexible without cable end
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Sustainable Offer Status:
    Green Premium product
    Wire Stripping Length:
    14 mm
    Tightening Torque:
    2.5-3 N.m
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product Certifications:
    ATEX || GL || DNV || VDE || cURus || LR || IEC-Ex || EAC || CSA
    Catalog:
    View
    Datasheet:
    View
    $465.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV42SF6LA Screw Terminal, Fused, For 6.3X32Mm Fuse Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV42SF6LA Screw Terminal, Fused, For 6.3X32Mm Fuse Pack of 50

    Schneider Electric

    $930.00
    The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a...
    SKU:
    NSYTRV42SF6LA
    Environmental Disclosure:
    ENVPEP2309018EN
    Quantity Per Set:
    set of 50
    Nominal Cross Section:
    16 mm²
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Product Or Component Type:
    terminal block
    Cable Cross Section:
    0.5-16 mm², flexible without cable end || 0.5-16 mm², solid
    Range:
    Linergy
    Terminal Block Type:
    fused disconnect
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Length:
    79 mm
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Net Weight:
    34.2 g
    Dielectric Strength:
    1000 V IEC 60243-1
    Material:
    polyamide 6/6: insulating case
    Reach Free Of Svhc:
    Yes
    Halogen Content Performance:
    Halogen free plastic parts product
    Provided Equipment:
    110...250 V light indicator
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    [Ue] Rated Operational Voltage:
    500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Product Compatibility:
    Spacial enclosures
    Product Certifications:
    CSA || EAC || cURus
    Rohs Exemption Information:
    Yes
    Flame Retardance:
    V0 0.8 mm UL 94
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Connection Position:
    sideways
    Product Name:
    Linergy TR
    Toxic Heavy Metal Free:
    Yes
    Height:
    60.5 mm
    Eu Rohs Directive:
    Compliant
    Fuse Size:
    6.3 x 32 mm
    Device Short Name:
    TRV
    Number Of Measurement Input:
    0
    Terminal Block Level:
    1
    Width:
    10.2 mm
    Mercury Free:
    Yes
    Mounting Mode:
    clip-on
    Dielectric Constant:
    3.7 at 1 MHz
    Line Rated Current:
    10-10 A EN/IEC 60947-7-1 || 10-10 A cURus || 10-10 A CSA
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Wire Stripping Length:
    9 mm
    Warranty:
    18 months
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Tightening Torque:
    0.6-0.8 N.m
    Sustainable Offer Status:
    Green Premium product
    Number Of Terminals:
    2
    Color:
    Black
    Circularity Profile:
    N/A
    Catalog:
    View
    Datasheet:
    View
    $930.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV42SF6LD Screw Terminal, Fused For 6.3X32Mm Fuse, Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV42SF6LD Screw Terminal, Fused For 6.3X32Mm Fuse, Pack of 50

    Schneider Electric

    $930.00
    Terminal block, Linergy TR, fused disconnect type, for 6.3x32mm fuse, with light indicator 12 to 30V, black
    SKU:
    NSYTRV42SF6LD
    Nominal Cross Section:
    16 mm²
    Eu Rohs Directive:
    Compliant
    Reach Free Of Svhc:
    Yes
    Sustainable Offer Status:
    Green Premium product
    Product Or Component Type:
    terminal block
    Product Compatibility:
    Spacial enclosures
    Range:
    Linergy
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Width:
    10.2 mm
    Wire Stripping Length:
    9 mm
    Halogen Content Performance:
    Halogen free plastic parts product
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Net Weight:
    34.2 g
    Circularity Profile:
    N/A
    Product Certifications:
    CSA || cURus || EAC
    [Ue] Rated Operational Voltage:
    500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
    Dielectric Constant:
    3.7 at 1 MHz
    Mounting Mode:
    clip-on
    Toxic Heavy Metal Free:
    Yes
    Number Of Measurement Input:
    0
    Connection Position:
    sideways
    Device Short Name:
    TRV
    Color:
    Black
    Quantity Per Set:
    set of 50
    Cable Cross Section:
    0.5-16 mm², flexible without cable end || 0.5-16 mm², solid
    Tightening Torque:
    0.6-0.8 N.m
    Line Rated Current:
    10-10 A EN/IEC 60947-7-1 || 10-10 A cURus || 10-10 A CSA
    Fuse Size:
    6.3 x 32 mm
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Warranty:
    18 months
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Height:
    60.5 mm
    Product Name:
    Linergy TR
    Flame Retardance:
    V0 0.8 mm UL 94
    Material:
    polyamide 6/6: insulating case
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Dielectric Strength:
    1000 V IEC 60243-1
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Number Of Terminals:
    2
    Provided Equipment:
    12...30 V light indicator
    Mercury Free:
    Yes
    Terminal Block Level:
    1
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Environmental Disclosure:
    ENVPEP2309018EN
    Rohs Exemption Information:
    Yes
    Terminal Block Type:
    fused disconnect
    Length:
    79 mm
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Catalog:
    View
    Datasheet:
    View
    $930.00
    Add to Cart Quick view

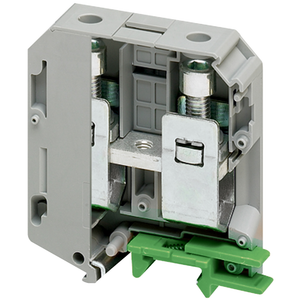

  • Schneider Electric NSYTRV702 Screw Terminal, Feed Through, 2 Points, Pack of 10
    Add to Cart
    Quick view

    Schneider Electric NSYTRV702 Screw Terminal, Feed Through, 2 Points, Pack of 10

    Schneider Electric

    $279.00
    Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 70 mm² nominal cross section. The rated operational voltage is 600V conforming to cURus, 1000V conforming to CSA and 1000V conforming to EN/IEC 60947-7-1. The...
    SKU:
    NSYTRV702
    Dielectric Constant:
    3.7 at 1 MHz
    Product Name:
    Linergy TR
    Mounting Mode:
    clip-on
    Tightening Torque:
    8-10 N.m
    Toxic Heavy Metal Free:
    Yes
    Material:
    polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    Cable Cross Section:
    25-70 mm², solid with cable end || 25-70 mm², solid without cable end || 25-70 mm², flexible with cable end || 16-95 mm², flexible without cable end
    Connection Position:
    sideways
    Number Of Terminals:
    2
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Number Of Measurement Input:
    1
    Range:
    Linergy
    Device Short Name:
    TRV
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Line Rated Current:
    192-192 A EN/IEC 60947-7-1 || 192-192 A CSA || 192-192 A cURus
    Net Weight:
    195 g
    Height:
    87.5 mm
    Terminal Block Type:
    passthrough
    Connections - Terminals:
    1 x screw terminal upstream M8) || 1 x screw terminal downstream M8)
    Quantity Per Set:
    set of 10
    Halogen Content Performance:
    Halogen free plastic parts product
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Terminal Block Level:
    1
    Accessory / Separate Part Category:
    connection accessory
    [Ue] Rated Operational Voltage:
    1000 V EN/IEC 60947-7-1 || 1000 V CSA || 600 V cURus
    Warranty:
    18 months
    Product Or Component Type:
    terminal block
    Environmental Disclosure:
    ENVPEP2309018EN
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Eu Rohs Directive:
    Compliant
    Dielectric Strength:
    1000 V IEC 60243-1
    Rohs Exemption Information:
    Yes
    Width:
    20.3 mm
    Circularity Profile:
    N/A
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Product Certifications:
    DNV || CSA || EAC || cURus || LR || IEC-Ex || VDE || GL || ATEX
    Mercury Free:
    Yes
    Nominal Cross Section:
    70 mm²
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Sustainable Offer Status:
    Green Premium product
    Flame Retardance:
    V0 0.8 mm UL 94
    Reach Free Of Svhc:
    Yes
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Wire Stripping Length:
    24 mm
    Product Compatibility:
    Spacial enclosures
    Length:
    70.5 mm
    Color:
    Gray
    Catalog:
    View
    Datasheet:
    View
    $279.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV702BL Screw Terminal, Feed Through, 2 Points, Pack of 10
    Add to Cart
    Quick view

    Schneider Electric NSYTRV702BL Screw Terminal, Feed Through, 2 Points, Pack of 10

    Schneider Electric

    $418.50
    Terminal block, Linergy TR, blue, 70mm2, passthrough, 2 points, set of 10
    SKU:
    NSYTRV702BL
    Material:
    polyamide 6/6: insulating case
    Height:
    87.5 mm
    Reach Free Of Svhc:
    Yes
    Number Of Terminals:
    2
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Quantity Per Set:
    set of 10
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Length:
    70.5 mm
    [Ue] Rated Operational Voltage:
    1000 V EN/IEC 60947-7-1 || 1000 V CSA || 600 V cURus
    Mounting Mode:
    clip-on
    Circularity Profile:
    N/A
    Toxic Heavy Metal Free:
    Yes
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Nominal Cross Section:
    70 mm²
    Dielectric Strength:
    1000 V IEC 60243-1
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Product Name:
    Linergy TR
    Line Rated Current:
    192-192 A EN/IEC 60947-7-1 || 192-192 A CSA || 192-192 A cURus
    Environmental Disclosure:
    ENVPEP2309018EN
    Product Or Component Type:
    terminal block
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Cable Cross Section:
    25-70 mm², flexible without cable end || 16-95 mm², solid
    Terminal Block Level:
    1
    Product Compatibility:
    Spacial enclosures
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Range:
    Linergy
    Wire Stripping Length:
    24 mm
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Tightening Torque:
    8-10 N.m
    Terminal Block Type:
    passthrough
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Width:
    20.3 mm
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Device Short Name:
    TRV
    Net Weight:
    195 g
    Mercury Free:
    Yes
    Rohs Exemption Information:
    Yes
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Connection Position:
    sideways
    Flame Retardance:
    V0 0.8 mm UL 94
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Dielectric Constant:
    3.7 at 1 MHz
    Sustainable Offer Status:
    Green Premium product
    Number Of Measurement Input:
    1
    Color:
    Blue
    Product Certifications:
    VDE || IEC-Ex || DNV || cURus || EAC || ATEX || GL || CSA || LR
    Catalog:
    View
    Datasheet:
    View
    $418.50
    Add to Cart Quick view
  • Schneider Electric NSYTRAPE24 Partition Plate, 2 Level, 2Mm, 4Pts, For Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRAPE24 Partition Plate, 2 Level, 2Mm, 4Pts, For Pack of 50

    Schneider Electric

    $29.00
    partition plate, Linergy TR terminals blocks, 4point, 2 level, 2mm width, for screw terminals, grey
    SKU:
    NSYTRAPE24
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Product Name:
    Linergy TR
    Quantity Per Set:
    set of 50
    Net Weight:
    8 g
    Product Or Component Type:
    partition
    Toxic Heavy Metal Free:
    Yes
    Rohs Exemption Information:
    Yes
    Product Compatibility:
    TRV screw terminal terminal block, length = 69.9 mm
    Number Of Measurement Input:
    2 || 4
    Reach Free Of Svhc:
    Yes
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Mercury Free:
    Yes
    Halogen Content Performance:
    Halogen free plastic parts product
    Color:
    Gray
    Device Short Name:
    TRA
    Accessory / Separate Part Category:
    insulation accessory
    Thickness:
    2 mm
    Number Of Terminals:
    2
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Cable Cross Section:
    4-4 mm² || 2.5-2.5 mm²
    Range:
    Linergy
    Warranty:
    18 months
    Catalog:
    View
    Datasheet:
    View
    $29.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV24DBL Screw Terminal,2 Level, 4Pts,2,5Mma Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV24DBL Screw Terminal,2 Level, 4Pts,2,5Mma Pack of 50

    Schneider Electric

    $160.00
    Terminal block, Linergy TR, blue, 2.5mm2, double level, 4 points, set of 10
    SKU:
    NSYTRV24DBL
    Number Of Terminals:
    2
    Product Certifications:
    GL || ATEX || CSA || EAC || LR || DNV || IEC-Ex || cURus
    Mercury Free:
    Yes
    Quantity Per Set:
    set of 50
    Accessory / Separate Part Category:
    connection accessory
    China Rohs Regulation:
    Product out of China RoHS scope. Substance declaration for your information.
    Connections - Terminals:
    1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
    Terminal Block Level:
    2
    Flame Retardance:
    V0 0.8 mm UL 94
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Height:
    65 mm
    Material:
    polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    Product Or Component Type:
    terminal block
    Rohs Exemption Information:
    Yes
    Product Compatibility:
    Spacial enclosures
    Number Of Measurement Input:
    4
    Dielectric Strength:
    1000 V IEC 60243-1
    [Ue] Rated Operational Voltage:
    600 V CSA || 500 V EN/IEC 60947-7-1 || 352 V ATEX Exe II Ex II 2 GD || 600 V cURus
    Terminal Block Type:
    passthrough
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Device Short Name:
    TRV
    Halogen Content Performance:
    Halogen free plastic parts product
    Tightening Torque:
    0.5-0.6 N.m
    Circularity Profile:
    N/A
    Sustainable Offer Status:
    Green Premium product
    Eu Rohs Directive:
    Compliant with Exemptions
    Wire Stripping Length:
    9 mm
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Dielectric Constant:
    3.7 at 1 MHz
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Width:
    5.2 mm
    Mounting Mode:
    clip-on
    Length:
    69.9 mm
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Connection Position:
    sideways
    Nominal Cross Section:
    2.5 mm²
    Line Rated Current:
    24-24 A EN/IEC 60947-7-1 || 20-20 A cURus || 20-20 A CSA || 20-20 A ATEX Exe II Ex II 2 GD
    Cable Cross Section:
    0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end
    Warranty:
    18 months
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Range:
    Linergy
    Environmental Disclosure:
    ENVPEP2309018EN
    Color:
    Blue
    Product Name:
    Linergy TR
    Net Weight:
    15.3 g
    Catalog:
    View
    Datasheet:
    View
    $160.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV44DPE Screw Terminal, Double Level, Protective
    Add to Cart
    Quick view

    Schneider Electric NSYTRV44DPE Screw Terminal, Double Level, Protective

    Schneider Electric

    $18.60
    Terminal block, Linergy TR, green-yellow, 4mm2, 2 level connt, protective earth, 4 points, Set of 50
    SKU:
    NSYTRV44DPE
    Tightening Torque:
    0.6-0.8 N.m
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Product Compatibility:
    Spacial enclosures
    Terminal Block Type:
    protective earth
    Product Certifications:
    LR || GL || CSA || ATEX || EAC || DNV || IEC-Ex || cURus
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Halogen Content Performance:
    Halogen free plastic parts product
    Number Of Measurement Input:
    4
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Warranty:
    18 months
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Device Short Name:
    TRV
    Dielectric Strength:
    1000 V IEC 60243-1
    Environmental Disclosure:
    ENVPEP2309022EN
    Product Or Component Type:
    terminal block
    Mounting Mode:
    clip-on
    Connection Position:
    sideways
    Material:
    polyamide 6/6: insulating case
    Quantity Per Set:
    set of 50
    Cable Cross Section:
    0.14-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end
    Nominal Cross Section:
    4 mm²
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Height:
    65 mm
    China Rohs Regulation:
    Product out of China RoHS scope. Substance declaration for your information.
    Terminal Block Level:
    2
    Range:
    Linergy
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Width:
    6.2 mm
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Circularity Profile:
    N/A
    Number Of Terminals:
    2
    Sustainable Offer Status:
    Green Premium product
    Rohs Exemption Information:
    Yes
    Eu Rohs Directive:
    Compliant with Exemptions
    Product Name:
    Linergy TR
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Wire Stripping Length:
    9 mm
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Net Weight:
    23.3 g
    Flame Retardance:
    V0 0.8 mm UL 94
    Dielectric Constant:
    3.7 at 1 MHz
    Mercury Free:
    Yes
    Color:
    green-yellow
    Length:
    69.9 mm
    Catalog:
    View
    Datasheet:
    View
    $18.60
    Add to Cart Quick view
  • Schneider Electric NSYTRV44D Screw Terminal, Double Level, 4 Points,
    Add to Cart
    Quick view

    Schneider Electric NSYTRV44D Screw Terminal, Double Level, 4 Points,

    Schneider Electric

    $5.10
    Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 800V conforming to EN/IEC 60947-7-1 and 440V conforming to ATEX...
    SKU:
    NSYTRV44D
    Line Rated Current:
    30-30 A CSA || 30-30 A cURus || 30-30 A EN/IEC 60947-7-1 || 25.5-25.5 A ATEX Exe II Ex II 2 GD
    Quantity Per Set:
    set of 50
    Material:
    polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    Product Or Component Type:
    terminal block
    Product Name:
    Linergy TR
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Environmental Disclosure:
    ENVPEP2309018EN
    Terminal Block Type:
    passthrough
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Rohs Exemption Information:
    Yes
    Sustainable Offer Status:
    Green Premium product
    Wire Stripping Length:
    9 mm
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Circularity Profile:
    N/A
    China Rohs Regulation:
    Product out of China RoHS scope. Substance declaration for your information.
    Product Certifications:
    LR || IEC-Ex || EAC || GL || ATEX || cURus || DNV || CSA
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Cable Cross Section:
    0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end || 0.14-6 mm², solid without cable end
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Color:
    Gray
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    [Ue] Rated Operational Voltage:
    600 V CSA || 600 V cURus || 800 V EN/IEC 60947-7-1 || 440 V ATEX Exe II Ex II 2 GD
    Width:
    6.2 mm
    Length:
    69.9 mm
    Height:
    65 mm
    Warranty:
    18 months
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Range:
    Linergy
    Product Compatibility:
    Spacial enclosures
    Eu Rohs Directive:
    Compliant with Exemptions
    Mercury Free:
    Yes
    Device Short Name:
    TRV
    Flame Retardance:
    V0 0.8 mm UL 94
    Mounting Mode:
    clip-on
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Net Weight:
    17 g
    Nominal Cross Section:
    4 mm²
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Number Of Measurement Input:
    4
    Connections - Terminals:
    1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
    Connection Position:
    sideways
    Dielectric Strength:
    1000 V IEC 60243-1
    Terminal Block Level:
    2
    Accessory / Separate Part Category:
    connection accessory
    Dielectric Constant:
    3.7 at 1 MHz
    Halogen Content Performance:
    Halogen free plastic parts product
    Number Of Terminals:
    2
    Tightening Torque:
    0.6-0.8 N.m
    Catalog:
    View
    Datasheet:
    View
    $5.10
    Add to Cart Quick view
  • Schneider Electric NSYTRV44DBL Screw Terminal, Double Level, 4 Points,
    Add to Cart
    Quick view

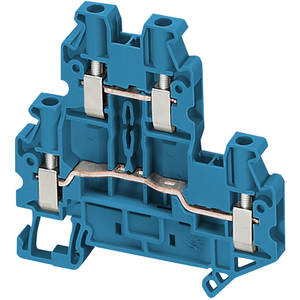

    Schneider Electric NSYTRV44DBL Screw Terminal, Double Level, 4 Points,

    Schneider Electric

    $5.10
    Terminal block, Linergy TR, blue, 4mm2, double level, 4 points, set of 10
    SKU:
    NSYTRV44DBL
    Material:
    polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Cable Cross Section:
    0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end || 0.14-6 mm², solid without cable end
    Flame Retardance:
    V0 0.8 mm UL 94
    Quantity Per Set:
    set of 50
    Halogen Content Performance:
    Halogen free plastic parts product
    Connection Position:
    sideways
    Terminal Block Level:
    2
    Width:
    6.2 mm
    Accessory / Separate Part Category:
    connection accessory
    Product Certifications:
    GL || LR || CSA || cURus || DNV || IEC-Ex || ATEX || EAC
    Line Rated Current:
    30-30 A CSA || 30-30 A cURus || 30-30 A EN/IEC 60947-7-1 || 25.5-25.5 A ATEX Exe II Ex II 2 GD
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Nominal Cross Section:
    4 mm²
    Mounting Mode:
    clip-on
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Product Compatibility:
    Spacial enclosures
    Connections - Terminals:
    1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Color:
    Blue
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Eu Rohs Directive:
    Compliant with Exemptions
    Mercury Free:
    Yes
    Rohs Exemption Information:
    Yes
    Sustainable Offer Status:
    Green Premium product
    Product Name:
    Linergy TR
    Length:
    69.9 mm
    [Ue] Rated Operational Voltage:
    600 V CSA || 600 V cURus || 800 V EN/IEC 60947-7-1 || 440 V ATEX Exe II Ex II 2 GD
    Circularity Profile:
    N/A
    Wire Stripping Length:
    9 mm
    Range:
    Linergy
    Net Weight:
    17 g
    Warranty:
    18 months
    Terminal Block Type:
    passthrough
    Number Of Measurement Input:
    4
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Environmental Disclosure:
    ENVPEP2309018EN
    Tightening Torque:
    0.6-0.8 N.m
    Height:
    65 mm
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Dielectric Constant:
    3.7 at 1 MHz
    Dielectric Strength:
    1000 V IEC 60243-1
    Device Short Name:
    TRV
    China Rohs Regulation:
    Product out of China RoHS scope. Substance declaration for your information.
    Number Of Terminals:
    2
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Product Or Component Type:
    terminal block
    Catalog:
    View
    Datasheet:
    View
    $5.10
    Add to Cart Quick view
  • Schneider Electric NSYTRV24DPE Screw Terminal, Protect,2Lv, 4Pts,2,5Mm2 Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRV24DPE Screw Terminal, Protect,2Lv, 4Pts,2,5Mm2 Pack of 50

    Schneider Electric

    $700.00
    Terminal block, Linergy TR, green-yellow, 2.5mm2, 2 level connt, protective earth, 4 points, Set of 50
    SKU:
    NSYTRV24DPE
    Halogen Content Performance:
    Halogen free plastic parts product
    Width:
    5.2 mm
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Warranty:
    18 months
    Quantity Per Set:
    set of 50
    Range:
    Linergy
    Length:
    69.9 mm
    Height:
    65 mm
    Number Of Measurement Input:
    4
    Mercury Free:
    Yes
    Tightening Torque:
    0.5-0.6 N.m
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Dielectric Strength:
    1000 V IEC 60243-1
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Circularity Profile:
    N/A
    Cable Cross Section:
    0.14-4 mm², solid || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², flexible without cable end
    Flame Retardance:
    V0 0.8 mm UL 94
    Sustainable Offer Status:
    Green Premium product
    Number Of Terminals:
    2
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Terminal Block Level:
    2
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Product Certifications:
    ATEX || CSA || DNV || EAC || LR || IEC-Ex || cURus || GL
    China Rohs Regulation:
    Product out of China RoHS scope. Substance declaration for your information.
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Mounting Mode:
    clip-on
    Product Or Component Type:
    terminal block
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Nominal Cross Section:
    2.5 mm²
    Material:
    polyamide 6/6: insulating case
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Color:
    green-yellow
    Eu Rohs Directive:
    Compliant with Exemptions
    Net Weight:
    21 g
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Device Short Name:
    TRV
    Product Compatibility:
    Spacial enclosures
    Dielectric Constant:
    3.7 at 1 MHz
    Product Name:
    Linergy TR
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Connection Position:
    sideways
    Rohs Exemption Information:
    Yes
    Wire Stripping Length:
    9 mm
    Terminal Block Type:
    protective earth
    Environmental Disclosure:
    ENVPEP2309022EN
    Catalog:
    View
    Datasheet:
    View
    $700.00
    Add to Cart Quick view
  • Schneider Electric NSYTRP26T Push-In Terminal,
    Add to Cart
    Quick view

    Schneider Electric NSYTRP26T Push-In Terminal,

    Schneider Electric

    $15.00
    Terminal block, Linergy TR, spring type, feed through, 3 levels Connections, 6 points, 2.5mm², grey, push-in type, set of 50
    SKU:
    NSYTRP26T
    Product Or Component Type:
    terminal block
    Sustainable Offer Status:
    Green Premium product
    Toxic Heavy Metal Free:
    Yes
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Line Rated Current:
    20-20 A CSA || 20-20 A EN/IEC 60947-7-1 || 20-20 A cURus
    Terminal Block Type:
    passthrough
    Flame Retardance:
    V0 0.8 mm UL 94
    Rohs Exemption Information:
    Yes
    Cable Cross Section:
    0.14-4 mm², flexible without cable end || 0.14-4 mm², solid
    Product Certifications:
    EAC || CSA || cURus
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Wire Stripping Length:
    10 mm
    Device Short Name:
    TRP
    Quantity Per Set:
    set of 50
    Circularity Profile:
    N/A
    [Ue] Rated Operational Voltage:
    500 V EN/IEC 60947-7-1 || 300 V CSA || 600 V cURus
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Terminal Block Level:
    3
    Height:
    58 mm
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Length:
    99.5 mm
    Width:
    5.2 mm
    Number Of Measurement Input:
    3
    Reach Free Of Svhc:
    Yes
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Net Weight:
    18 g
    Accessory / Separate Part Category:
    connection accessory
    Nominal Cross Section:
    2.5 mm²
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Connection Position:
    top
    Range:
    Linergy
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Connections - Terminals:
    3 x push-in upstream || 3 x push-in downstream
    Material:
    polyamide 6/6: insulating case
    Dielectric Strength:
    1000 V IEC 60243-1
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Mercury Free:
    Yes
    Product Name:
    Linergy TR
    Environmental Disclosure:
    ENVPEP2309019EN
    Number Of Terminals:
    6
    Product Compatibility:
    Spacial enclosures
    Tool Type:
    connection flat screwdriver || disconnection flat screwdriver
    Color:
    Gray
    Mounting Mode:
    clip-on
    Dielectric Constant:
    3.7 at 1 MHz
    Catalog:
    View
    Datasheet:
    View
    $15.00
    Add to Cart Quick view
  • Schneider Electric NSYTRV42SF5LA Term Block,Light Ind,Fused 5X20/25/30Mm
    Add to Cart
    Quick view

    Schneider Electric NSYTRV42SF5LA Term Block,Light Ind,Fused 5X20/25/30Mm

    Schneider Electric

    $16.10
    The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 5x20 mm, 5x25 mm or 5x30 mm fuses. This...
    SKU:
    NSYTRV42SF5LA
    Dielectric Strength:
    1000 V IEC 60243-1
    Product Compatibility:
    Spacial enclosures
    Number Of Measurement Input:
    0
    Device Short Name:
    TRV
    Terminal Block Type:
    fused disconnect
    Line Rated Current:
    6.3-6.3 A EN/IEC 60947-7-1 || 12-12 A cURus || 6.3-6.3 A CSA
    Ambient Air Temperature For Operation:
    -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
    Length:
    72.5 mm
    Range Compatibility:
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Wire Stripping Length:
    8 mm
    Net Weight:
    20 g
    Range:
    Linergy
    Resistivity:
    10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Provided Equipment:
    110...250 V light indicator
    Fuse Size:
    5 x 20 mm
    Dielectric Loss:
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Product Or Component Type:
    terminal block
    Mercury Free:
    Yes
    Tightening Torque:
    0.5-0.8 N.m
    Height:
    56.5 mm
    [Ue] Rated Operational Voltage:
    500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
    Material:
    polyamide 6/6: insulating case
    Environmental Disclosure:
    ENVPEP2309018EN
    Tool Type:
    connection screwdriver || disconnection screwdriver
    Warranty:
    18 months
    Number Of Terminals:
    2
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Surface Resistance:
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Product Certifications:
    cURus || CSA || EAC
    Sustainable Offer Status:
    Green Premium product
    Dielectric Constant:
    3.7 at 1 MHz
    Terminal Block Level:
    1
    Rohs Exemption Information:
    Yes
    China Rohs Regulation:
    Product out of China RoHS scope. Substance declaration for your information.
    Nominal Cross Section:
    4 mm²
    Product Name:
    Linergy TR
    Circularity Profile:
    N/A
    Flame Retardance:
    V0 0.8 mm UL 94
    Color:
    Black
    Width:
    8.2 mm
    Connections - Terminals:
    1 x screw terminal upstream || 1 x screw terminal downstream
    Connection Position:
    sideways
    Quantity Per Set:
    set of 50
    Halogen Content Performance:
    Halogen free plastic parts product
    Creep Resistance:
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Cable Cross Section:
    0.2-4 mm², flexible without cable end || 0.2-4 mm², solid
    Mounting Mode:
    clip-on
    Catalog:
    View
    Datasheet:
    View
    $16.10
    Add to Cart Quick view
  • Schneider Electric NSYTRAPR24 Partition Plate, 4Pts, 2Mm Width, For Sp Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRAPR24 Partition Plate, 4Pts, 2Mm Width, For Sp Pack of 50

    Schneider Electric

    $56.50
    partition plate, Linergy TR terminals blocks, 4point, 2mm width, for spring terminal, grey
    SKU:
    NSYTRAPR24
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Accessory / Separate Part Category:
    insulation accessory
    Quantity Per Set:
    set of 50
    Thickness:
    2 mm
    Product Or Component Type:
    partition
    Reach Free Of Svhc:
    Yes
    Number Of Measurement Input:
    2
    Device Short Name:
    TRA
    Toxic Heavy Metal Free:
    Yes
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Halogen Content Performance:
    Halogen free plastic parts product
    Color:
    Gray
    Product Name:
    Linergy TR
    Rohs Exemption Information:
    Yes
    Mercury Free:
    Yes
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Net Weight:
    6.7 g
    Product Compatibility:
    TRR spring terminal terminal block, length = 72 mm || TRP push-in terminal block, length = 72 mm
    Cable Cross Section:
    2.5-2.5 mm²
    Range:
    Linergy
    Warranty:
    18 months
    Number Of Terminals:
    3 || 4
    Catalog:
    View
    Datasheet:
    View
    $56.50
    Add to Cart Quick view
  • Schneider Electric NSYTRACEP24 Spacer End Cover, 2 Level, 4Pts, For Scr Pack of 50
    Add to Cart
    Quick view

    Schneider Electric NSYTRACEP24 Spacer End Cover, 2 Level, 4Pts, For Scr Pack of 50

    Schneider Electric

    $90.00
    Partial Cover plate, Linergy TR, 2 level, 4 points, for screw terminals NSYTRV24D, NSYTR, grey, Set of 50
    SKU:
    NSYTRACEP24
    Range:
    Linergy
    Color:
    Gray
    Number Of Terminals:
    2
    Product Or Component Type:
    partial cover plate
    Warranty:
    18 months
    China Rohs Regulation:
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Of Svhc:
    Yes
    Cable Cross Section:
    2.5-2.5 mm² || 4-4 mm²
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Quantity Per Set:
    set of 50
    Product Compatibility:
    TRV screw terminal - passthrough terminal block, length = 69.9 mm || TRV screw terminal - blade disconnect terminal block, length = 69.9 mm
    Number Of Measurement Input:
    2 || 4
    Mercury Free:
    Yes
    Product Name:
    Linergy TR
    Device Short Name:
    TRA
    Halogen Content Performance:
    Halogen free plastic parts product
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Toxic Heavy Metal Free:
    Yes
    Accessory / Separate Part Category:
    insulation accessory
    Rohs Exemption Information:
    Yes
    Thickness:
    2.2 mm
    Net Weight:
    2.6 g
    Catalog:
    View
    Datasheet:
    View
    $90.00
    Add to Cart Quick view
