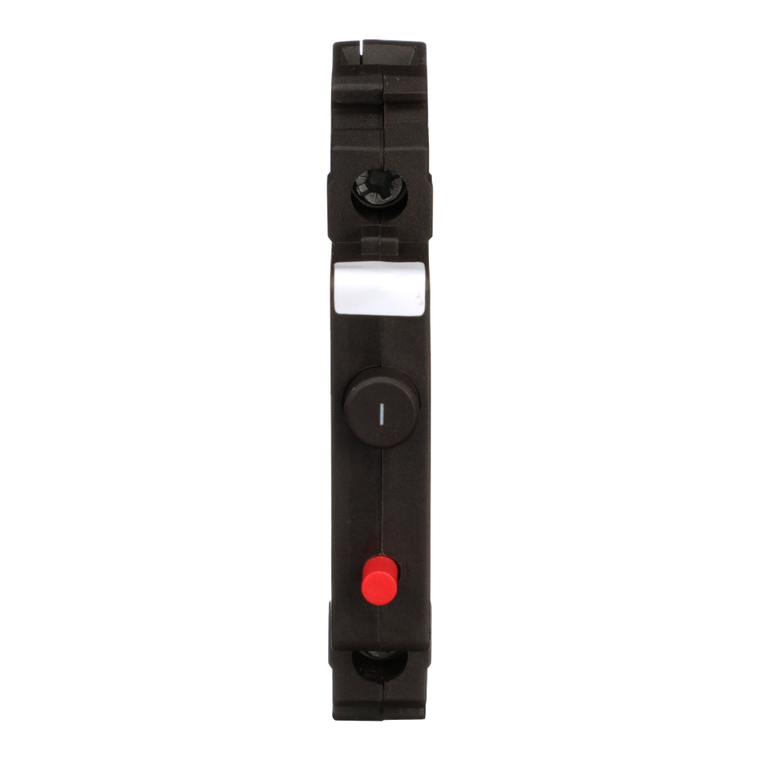

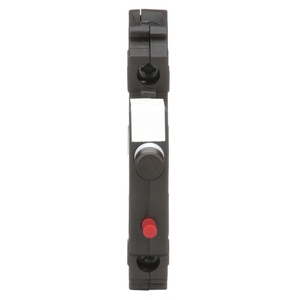

Schneider Electric 9080GCB10 Circuit Protector 250V 1A Type Nema
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 1.0 ampere. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
- Protection Type:
- overcurrent
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Height:
- 3.45 in
- Mounting Support:
- 9080GH track || 35 mm DIN rail
- Trip Unit Technology:
- thermal-magnetic
- Ambient Air Temperature For Operation:
- -22-140 °F
- Poles Description:
- 1P
- [Ue] Rated Operational Voltage:
- 250 V AC || 65 V DC
- Wire Stripping Length:
- 0.5 in
- Line Rated Current:
- 0.0416666666666667
- Device Application:
- Industrial Application
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 0.5 in
- Warranty:
- 18 months
- Product Or Component Type:
- Circuit Protector
- Temperature For Tripping:
- 70 °F
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Standards:
- CSA C22.2 No 235 || DIN 57470 || UL 1077
- Awg Gauge:
- AWG 16...AWG 10 copper
- Contact Operation:
- trip-free
- Width:
- 3.15 in
- Tightening Torque:
- control circuit 7-7 lbf.in cage type connector
- Product Certifications:
- CSA file 025490 class 3211 07 || UL recognized E233026 CCN QVNU2 || CE
- Reach Free Of Svhc:
- Yes
- Electrical Connection:
- box lugs
- Rohs Exemption Information:
- Yes
- Range Of Product:
- 9080GCB
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Wiring Device Additional Information:
- factory wiring only
