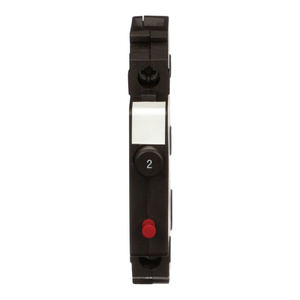

Schneider Electric 9080GCB150 Circuit Protector 250V 15Amp Type Nema
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 15.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
- Line Rated Current:
- 15 A
- Mounting Support:
- 9080GH track || 35 mm DIN rail
- Height:
- 3.45 in
- Contact Operation:
- trip-free
- Awg Gauge:
- AWG 16...AWG 10 copper
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- control circuit 7-7 lbf.in cage type connector
- Mercury Free:
- Yes
- Poles Description:
- 1P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Electrical Connection:
- box lugs
- Width:
- 3.15 in
- Wire Stripping Length:
- 0.5 in
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Application:
- Industrial Application
- Temperature For Tripping:
- 70 °F
- Range Of Product:
- 9080GCB
- Product Or Component Type:
- Circuit Protector
- Product Certifications:
- CE || CSA file 025490 class 3211 07 || UL recognized E233026 CCN QVNU2
- Ambient Air Temperature For Operation:
- -22-140 °F
- Protection Type:
- overcurrent
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 0.5 in
- Wiring Device Additional Information:
- factory wiring only
- Standards:
- CSA C22.2 No 235 || UL 1077 || DIN 57470
- Trip Unit Technology:
- thermal-magnetic
- Reach Free Of Svhc:
- Yes
- [Ue] Rated Operational Voltage:
- 65 V DC || 125 V AC
