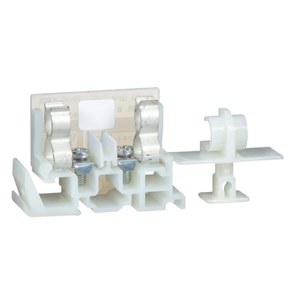

Schneider Electric 9080GD6 Terminal Block 600V 170Amp Nema +Options Pack of 10
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #12 through 1/0 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 1/0 AWG, 1 #1 AWG, 1 #2 AWG, 1 or 2 #4 AWG, 1 to 3 #6 AWG, 1 to 5 #8 AWG, 1 to 6 #10 AWG or 1 to 7 #12 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized for up to 180 Amps and CSA certified for up to 170 Amp. Both UL and CSA have the block rated at up to 600 VAC or VDC.
- Localisation On Device:
- standard
- Product Compatibility:
- GD6B
- Product Certifications:
- UL recognized E60616 CCN XCFR2 || CE || CSA file 62144 class 6228 01
- Toxic Heavy Metal Free:
- Yes
- Electrical Connection:
- tin plated steel box lugs
- Eu Rohs Directive:
- Compliant
- Awg Gauge:
- AWG 12...AWG 1/0 copper
- Pvc Free:
- Yes
- [Ue] Rated Operational Voltage:
- 600 V AC/DC
- Connections - Terminals:
- lug tin plated steel 45-50 lbf.in : AWG 12...AWG 1/0 copper)
- Mercury Free:
- Yes
- Product Or Component Type:
- terminal block
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Width:
- 2.12 in
- Reach Free Of Svhc:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Line Rated Current:
- 180-180 A UL || 170-170 A CSA
- Ambient Air Temperature For Operation:
- -40-257 °F
- Depth:
- 0.7 in
- Number Of Terminal Blocks:
- 17 per foot
- Height:
- 2.71 in
- Warranty:
- 18 months
- Color:
- natural
- Rohs Exemption Information:
- Yes
- Range Of Product:
- 9080G
- Mounting Support:
- 35 mm DIN rail || 9080GH track
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Quantity Per Set:
- set of 10
- Catalog:
- View
- Datasheet:
- View
