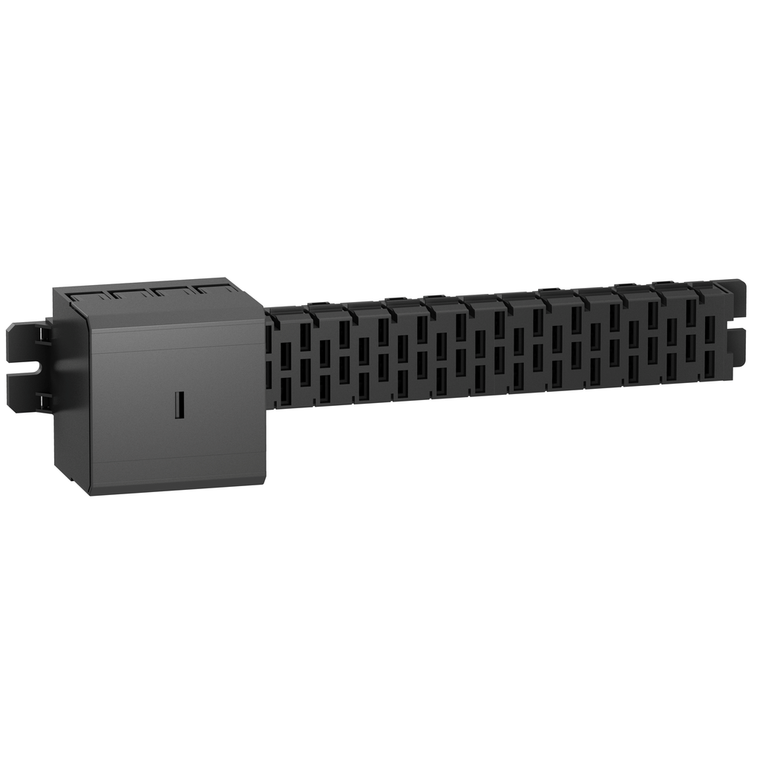

Schneider Electric AK5JB143 Busbar Tetra 160A Lg 344M

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric AK5JB143 Busbar Tetra 160A Lg 344M

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

AK5JB143

UPC:

3.38911E+12

MPN:

Condition:

New

Eu Rohs Directive:

Compliant

Depth:

82 mm

Mercury Free:

Yes

Enclosure/Cubicle Width:

600 mm

Product Or Component Type:

busbar

[Ui] Rated Insulation Voltage:

600 V CSA || 600 V UL || 690 V IEC 60439-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Name:

HK

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Number Of Tap-Offs:

12

Protection Type:

aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A || gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A

Range:

Linergy

Width:

81 mm

Peak Current:

25 kA

Number Of Conductors:

4

Warranty:

18 months

Toxic Heavy Metal Free:

Yes

Connections - Terminals:

connector 2.5-70 mm² flexible with cable end || connector 2.5-70 mm² rigid

Network Frequency:

50/60 Hz

Fire Resistance:

850 °C IEC 60695

[Ie] Rated Operational Current:

160 A 35 °C

Net Weight:

0.7 kg

Device Application:

distribution

Sustainable Offer Status:

Green Premium product

Mounting Position:

vertical using side stop AK5BT01 on mounting plates AK5PA || horizontal

Flame Retardance:

V0 conforming to UL 94

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Bar Length:

344 mm

Reach Free Of Svhc:

Yes

Rohs Exemption Information:

Yes

Environmental Disclosure:

ENVPEP120206EN

[Ue] Rated Operational Voltage:

400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1 || 480 V off-load plugging-in and unplugging, with supply switched on)CSA || 480 V off-load plugging-in and unplugging, with supply switched on)UL || 600 V plugging-in and

Standards:

IEC 60439

I²T On Activation:

10000000 A².s

Ip Degree Of Protection:

IPxx B conforming to IEC 60529

Bar Width:

45 mm

Network Type:

AC

Tightening Torque:

10 N.m

Product Certifications:

CSA || UL || LROS (Lloyds register of shipping) || DNV
