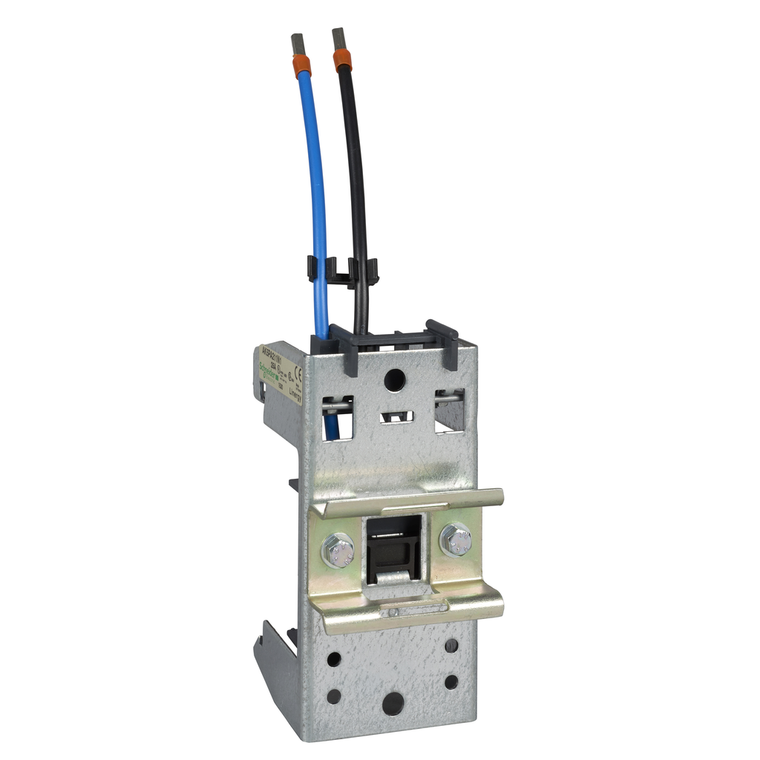

Schneider Electric AK5PA211PH12 Plate Bip Ph1 Ph2 H105Mm
Schneider Electric
$96.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric AK5PA211PH12 Plate Bip Ph1 Ph2 H105Mm
PLATE BIP PH1 PH2 H105MM
- Number Of Cables:
- 2 4-4 mm² 105 °C
- Eu Rohs Directive:
- Compliant
- Standards:
- IEC 60439
- Poles Description:
- 2P
- Sustainable Offer Status:
- Green Premium product
- [Ith] Conventional Free Air Thermal Current:
- 25 A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile:
- N/A
- Height:
- 105 mm
- Product Or Component Type:
- mounting plate
- Range:
- Linergy
- [Ui] Rated Insulation Voltage:
- 690 V IEC 60439-1
- Depth:
- 61 mm
- Product Name:
- HK
- I²T On Activation:
- 200000 A².s
- Net Weight:
- 0.135 kg
- Reach Free Of Svhc:
- Yes
- 9 Mm Pitches:
- 6
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Certifications:
- UL || CSA || DNV || LROS (Lloyds register of shipping)
- Width:
- 54 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP120206EN
- Warranty:
- 18 months
- Datasheet:
- View
