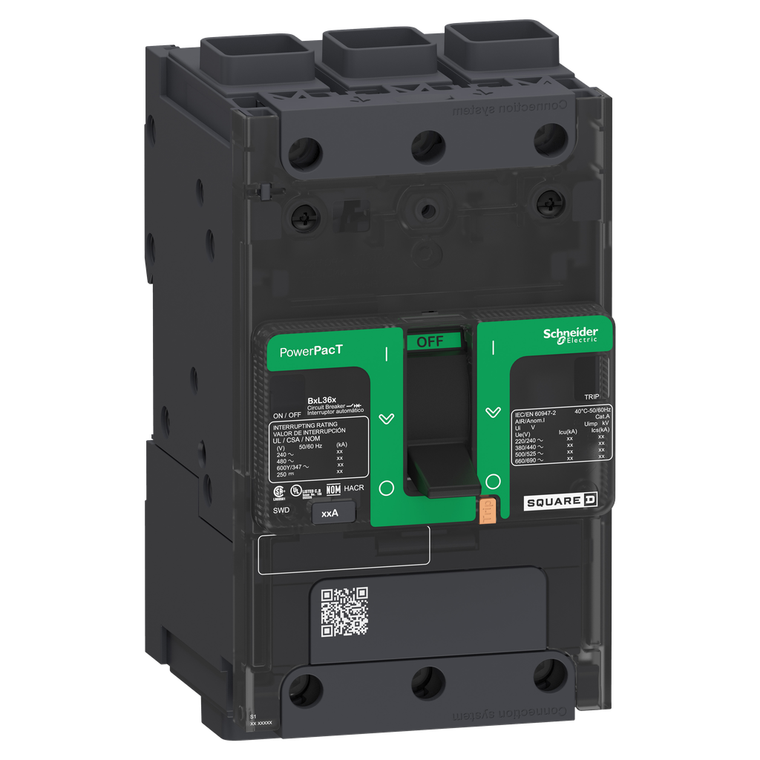

Schneider Electric BJF36040 Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 25kA, terminal nut, thermal magnetic, 80%
Schneider Electric
$1,754.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric BJF36040 Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 25kA, terminal nut, thermal magnetic, 80%
Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 25kA, terminal nut, thermal magnetic, 80%
- Electrical Durability:
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Wire Stripping Length:
- 20 mm
- Color:
- Gray RAL 7016)
- 9 Mm Pitches:
- 9
- Poles Description:
- 3P
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- distribution
- Tightening Torque:
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Range:
- PowerPact
- Depth:
- 80 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Short Name:
- BJ 040
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz UL 489
- Electrical Connection:
- terminal nut, ON and OFF end
- Trip Unit Technology:
- thermal-magneticTM-D,
- Net Weight:
- 0.924 kg
- Ambient Air Temperature For Operation:
- -25-70°C
- Awg Gauge:
- AWG 14...AWG 8 aluminium/copper || AWG 6...AWG 3/0 aluminium/copper
- Network Frequency:
- 50/60 Hz
- Local Signaling:
- presence of auxiliary contacts flag green)
- Breaking Capacity:
- 100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
- Halogen Content Performance:
- Halogen free product
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Circuit Breaker Application:
- HACR rated
- Circularity Profile:
- N/A
- Trip Unit Name:
- TM-D
- Eu Rohs Directive:
- Compliant with Exemptions
- Length:
- 20 mm
- Product Or Component Type:
- circuit breaker
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Product Certifications:
- UL || IEC || CCC || EAC || CSA || NOM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage:
- -50-85°C
- Quality Labels:
- CE
- Breaking Capacity Code:
- J
- Environmental Disclosure:
- ENVPEP2311047EN
- Operating Altitude:
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Utilisation Category:
- category A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Quantity Per Set:
- set of 1
- Connection Pitch:
- 27 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Weight:
- 0.924 kg
- Control Type:
- toggle
