Schneider Electric CAD506ED TeSys Deca control relay - 5 NO - <= 690 V - 48 V DC standard coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

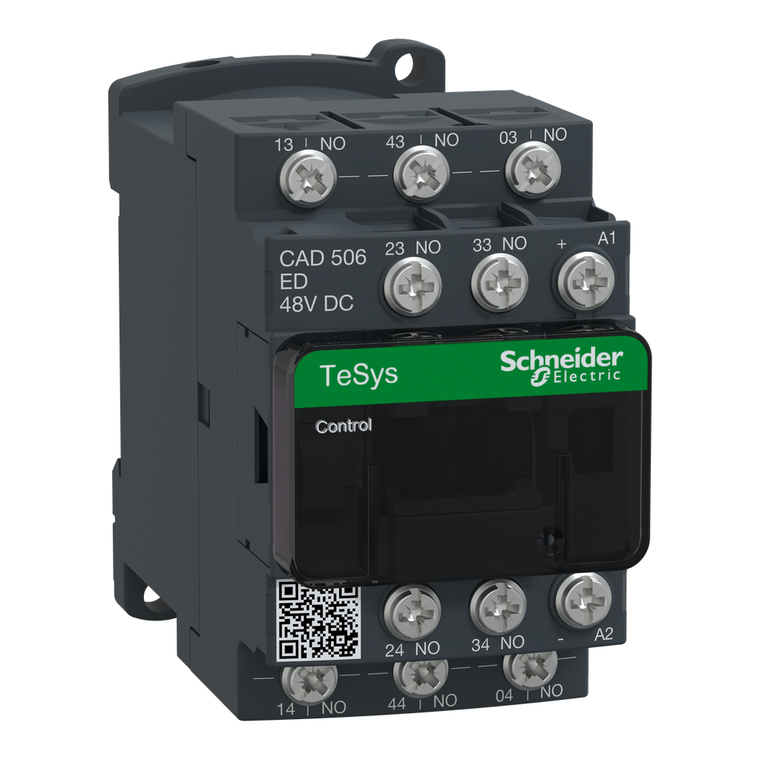

Schneider Electric CAD506ED TeSys Deca control relay - 5 NO - <= 690 V - 48 V DC standard coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

CAD506ED

UPC:

MPN:

CAD506ED

Condition:

New

Minimum Switching Current:

5 mA

Maximum Operating Rate:

180 cyc/mn

[Icw] Rated Short-Time Withstand Current:

100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

Mechanical Robustness:

shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

Inrush Power In W:

5.4-5.4 W 20°C)

Non-Overlap Time:

1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Mercury Free:

Yes

[Uc] Control Circuit Voltage:

48 V DC

Ambient Air Temperature For Operation:

-40-60°C || 60-70°C with derating

Irms Rated Making Capacity:

140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Operating Time:

53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening

Environmental Disclosure:

ENVPEP110230EN

Minimum Switching Voltage:

17 V

Standards:

EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

Associated Fuse Rating:

10 A gG conforming to IEC 60947-5-1

Mounting Support:

plate || rail

Control Circuit Voltage Limits:

0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC

Contactor Application:

control circuit

Ambient Air Temperature For Storage:

-60-80°C

Operating Altitude:

0...9842.52 ft (0...3000 m)

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Range:

TeSys || TeSys Deca

Time Constant:

28 ms

Mechanical Durability:

30 Mcycles

Protective Treatment:

TH IEC 60068

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Depth:

93 mm

Rohs Exemption Information:

Yes

Control Circuit Type:

DC standard

Product Name:

TeSys CAD

Warranty:

18 months

[Ue] Rated Operational Voltage:

<= 690 V AC 25...400 Hz

Insulation Resistance:

> 10 MOhm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Connections - Terminals:

lugs-ring terminals 8 mm)

Ip Degree Of Protection:

IP2X front face VDE 0106

Circularity Profile:

ENVEOLI1102030EN

Net Weight:

0.58 kg

Weight:

0.58 kg

[Ui] Rated Insulation Voltage:

600 V UL || 600 V CSA || 690 V IEC 60947-5-1

Pole Contact Composition:

5 NO

Utilisation Category:

AC-14 || AC-15 || DC-13

Device Short Name:

CAD

Hold-In Power Consumption In W:

5.4-5.4 W 20°C

Product Or Component Type:

control relay

Country of Origin:

Indonesia

Width:

45 mm
