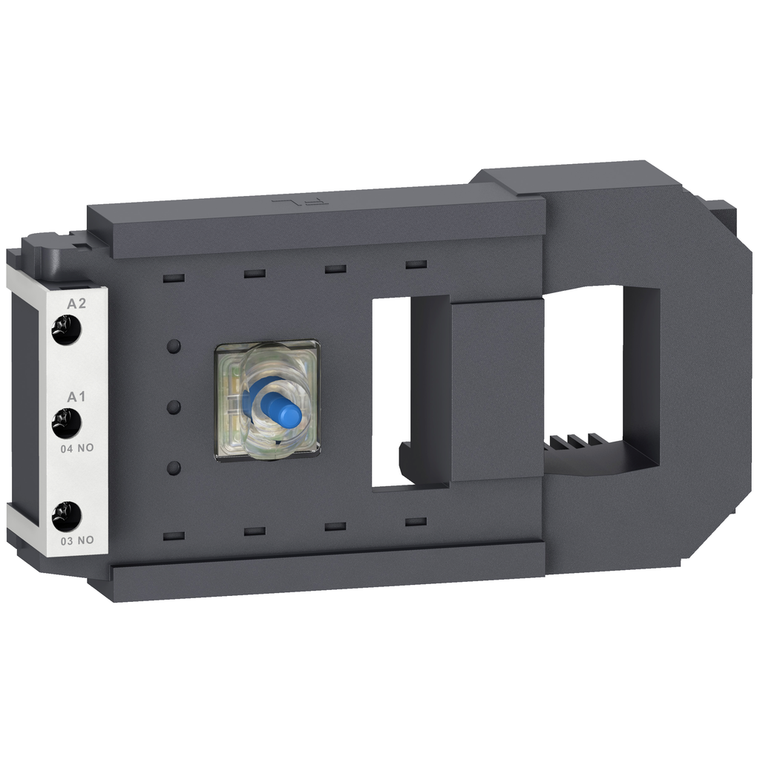

Schneider Electric LX1FL220 TeSys F - contactor coil - LX1FL - 220...240 V AC 40...400 Hz
TeSys F AC coil 220/230/240V 40-400Hz (voltage code M7/P7/U7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F630, LC1F1250. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 1200 cycles/hour. Green Premium compliant (RoHS/REACh).
- Inrush Power In Va:
- 1650-1650 VA 40...400 Hz cos phi 0.9 (at 20°C)
- Control Circuit Type:
- AC 40...400 Hz
- [Uc] Control Circuit Voltage:
- 220...240 V AC 40...400 Hz
- Range Compatibility:
- TeSys TeSys F LC1F contactor
- Inductance Of Closed Circuit:
- 3.35 H
- Net Weight:
- 1.5 kg
- Heat Dissipation:
- 20-20 W 40...400 Hz
- China Rohs Regulation:
- X
- Weight:
- 1.5 kg
- Rohs Exemption Information:
- Yes
- Country of Origin:
- France
- Hold-In Power Consumption In Va:
- 22-22 VA 40...400 Hz cos phi 0.3 (at 20°C)
- Ambient Air Temperature For Operation:
- -5-55°C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1505009EN
- Mechanical Durability:
- 5 Mcycles
- Circularity Profile:
- ENVEOLI1505009EN
- Maximum Operating Rate:
- 1200 cyc/h 55°C
- Product Compatibility:
- LC1F630 || LC1F1250
- Device Short Name:
- LX1FL
- Operating Time:
- 100...200 ms opening || 40...80 ms closing
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- Control Circuit Voltage Limits:
- operational 0.85...1.1 Uc 40...400 Hz 55°C) || drop-out 0.25...0.5 Uc 40...400 Hz 55°C)
- Average Resistance:
- 25.5 Ohm inrush 20°C || 730 Ohm holding 20°C
- Coil Technology:
- without built-in suppressor module
- Sustainable Offer Status:
- Green Premium product
- Range:
- TeSys
- Reach Free Of Svhc:
- Yes
- Warranty:
- 18 months
- Product Or Component Type:
- contactor coil
- Mercury Free:
- Yes
-
-
