Schneider Electric NSYRSW640 Swing Rack Wo/Panels 19P 40U
Schneider Electric
$909.28
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

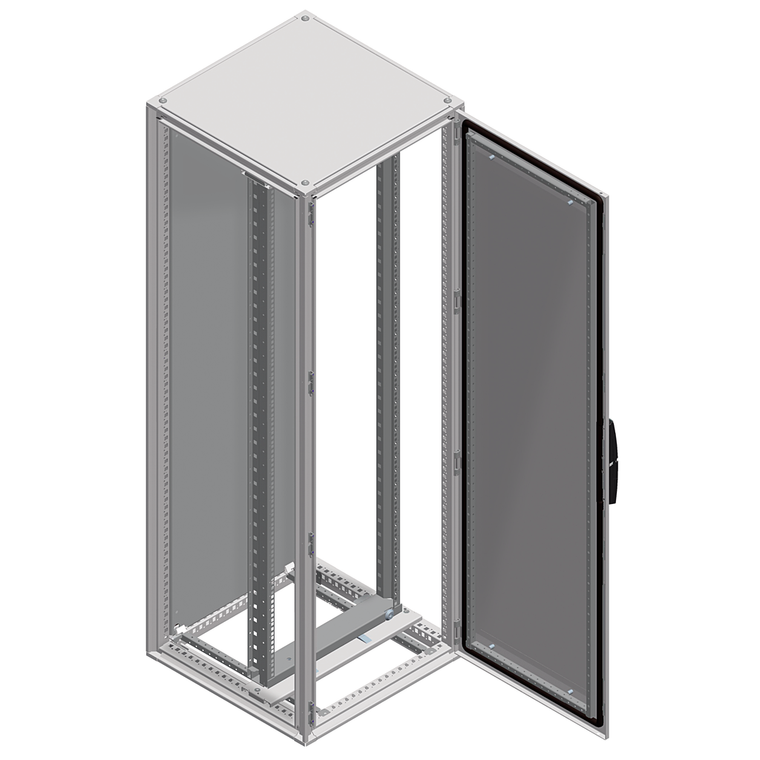

Schneider Electric NSYRSW640 Swing Rack Wo/Panels 19P 40U
Spacial SF / SM swing rack 19 inches without panels. 2000 x 600 mm. 40 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. 5mm double bar lock. Steel made, zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Application:
- electronic application
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- Height:
- 2000 mm
- Surface Finish:
- zinc coated
- Warranty:
- 18 months
- Adjustment:
- adjustable in depth every 25 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Width:
- 600 mm
- Range:
- Spacial
- Lock Type:
- lock 5 mm double bar
- Mounting Support:
- 19" swing rack support
- Device Composition:
- 1 rack
- Rohs Exemption Information:
- Yes
- Number Of Units 19":
- 40
- Mounting Location:
- on structure of enclosure
- Product Or Component Type:
- 19" rack
- Sustainable Offer Status:
- Green Premium product
- Fixing Mode:
- by fixing element
- Opening Of The 19" Racks:
- reversible 120 °
- Rack Type:
- swing without panels
- Range Compatibility:
- Spacial Spacial SF || Spacial Spacial SM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Accessory / Separate Part Category:
- mounting accessory
- Material:
- steel
- Environmental Disclosure:
- ENVPEP110923EN
- Permanent Permissible Load:
- 3 kg per unit
- Catalog:
- View
- Datasheet:
- View
