Schneider Electric NSYSMHR12 2 Horiz Adapt Profiles 1200

Schneider Electric NSYSMHR12 2 Horiz Adapt Profiles 1200

Schneider Electric
SKU:
NSYSMHR12
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$108.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

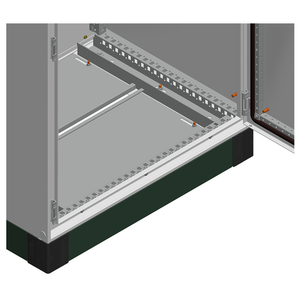

Spacial SM horizontal adaptation profiles. 1200 mm. Allows to have fixation points in the external frame of the monobloc enclosure. Mounting on top and bottom front of enclosure. Horizontal installation. Steel made, zinc coated surface finish. 2 profiles and fixing screws included.
Additional Information
Fixing Mode:
by screws - on front fixing point
Range:
Spacial
Product Or Component Type:
adaptation profile
Depth:
42 mm
Environmental Disclosure:
ENVPEP110923EN
Device Composition:
fixing screws || 2 profile
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Thickness:
1.5 mm
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Circularity Profile:
N/A
Width:
real 980 mm || nominal 1200 mm
Toxic Heavy Metal Free:
Yes
Quantity Per Set:
set of 1
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mounting Location:
top and bottom front of enclosure
Range Compatibility:
Spacial Spacial SM
Height:
24.5 mm
Accessory / Separate Part Category:
mounting accessory
Installation Direction:
horizontal
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Material:
steel
Reach Free Of Svhc:
Yes
Device Application:
multi-purpose
Surface Finish:
zinc coated
