Schneider Electric

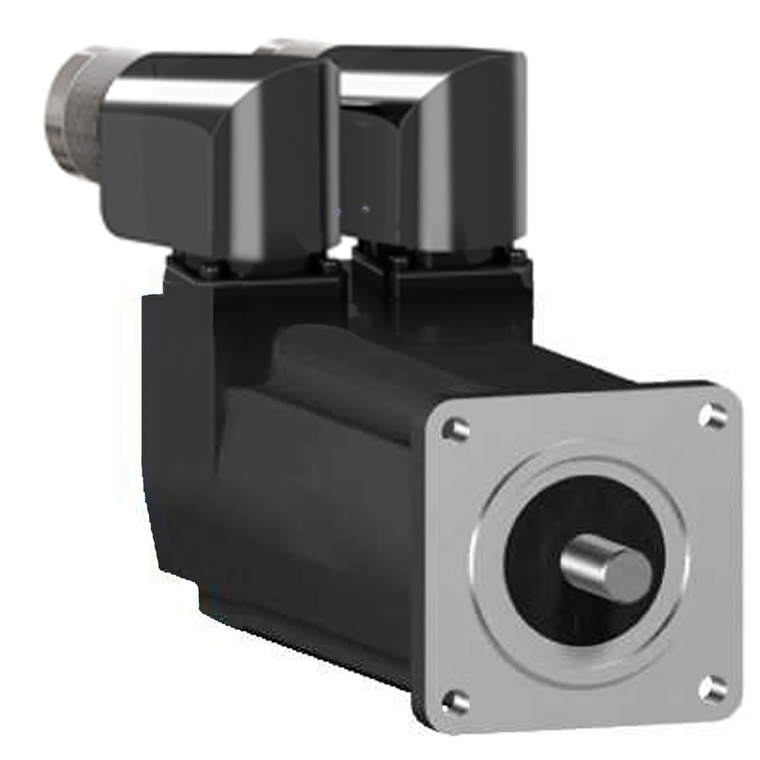

Schneider Electric SH30553P12A2000 servo motor SH3 055 1,05Nm,key,multi,nobrake,90°conn.IP54/IP65,9k RPM

SKU:

SH30553P12A2000

UPC:

MPN:

SH30553P12A2000

Condition:

New

Centring Collar Depth:

2 mm

Maximum Axial Force Fa:

40 N

Shaft Length:

20 mm

Environmental Disclosure:

ENVPEP111049EN

Maximum Radial Force Fr:

190 N 8000 rpm || 390 N 1000 rpm || 310 N 2000 rpm || 270 N 3000 rpm || 240 N 4000 rpm || 230 N 5000 rpm || 210 N 6000 rpm || 200 N 7000 rpm

Back Emf Constant:

41 V/krpm 20°C

Product Or Component Type:

servo motor

Peak Stall Torque:

3.5 N.m 115...480 V three phase

Type Of Cooling:

natural convection

Centring Collar Diameter:

40 mm

Electrical Connection:

rotatable right angled connector

Mercury Free:

Yes

Number Of Mounting Holes:

4

Pvc Free:

Yes

Mounting Support:

international standard flange

Holding Brake:

without

Width:

3 mm

Key Width:

3 mm

Continuous Stall Current:

1.7 A

Weight:

1.8 kg

Phase:

three phase

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Maximum Mechanical Speed:

9000 rpm

Continuous Power:

680 W

Motor Flange Size:

55 mm

Torque Constant:

0.62 N.m/A 120°C

[Us] Rated Supply Voltage:

115...480 V

Sustainable Offer Status:

Green Premium product

Stator Inductance:

37.98 mH

Circle Diameter Of The Mounting Holes:

63 mm

Continuous Stall Torque:

1.05 N.m 115...480 V three phase

Net Weight:

1.8 kg

Stator Resistance:

10.4 Ohm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Torque:

1.13 N.m 115 V single phase || 1.1 N.m 230 V single phase || 0.81 N.m 400 V three phase || 0.81 N.m 480 V three phase

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shaft End:

parallel key

Mounting Holes Diameter:

5.5 mm

Rohs Exemption Information:

Yes

Range Compatibility:

PacDrive 3

Encoder Type:

absolute multiturn SinCos Hiperface

Ip Degree Of Protection:

IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5 || IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5

Circularity Profile:

N/A

Device Short Name:

SH3.....P

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Country of Origin:

United States

Shaft Diameter:

9 mm
