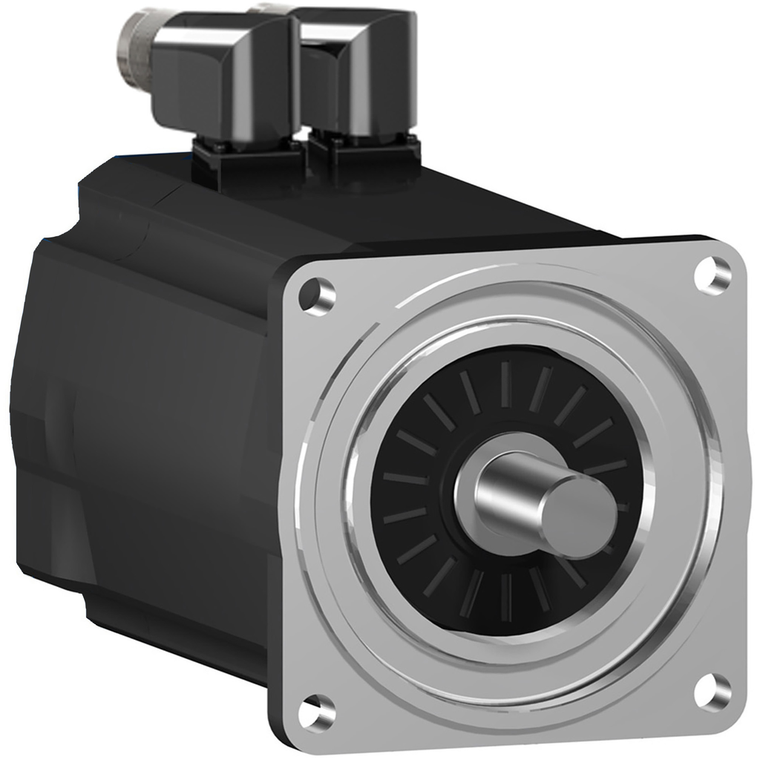

Schneider Electric SH31002P02F2100 servo motor SH3 100 5,8Nm,nokey,multi,brake,90°conn.IP65/IP65,6k RPM

Schneider Electric SH31002P02F2100 servo motor SH3 100 5,8Nm,nokey,multi,brake,90°conn.IP65/IP65,6k RPM

Schneider Electric
SKU:
SH31002P02F2100
$2,197.22
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and smooth shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 4.8A and a continuous power of 1900W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 rated product. The length of this product is 234.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 6.3kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Additional Information
Shaft Length:
40 mm
Holding Torque:
9 N.m
Warranty:
18 months
[Us] Rated Supply Voltage:
115...480 V
Centring Collar Diameter:
95 mm
Continuous Stall Current:
4.8 A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Torque Constant:
1.21 N.m/A 120°C
Back Emf Constant:
77 V/krpm 20°C
Peak Stall Torque:
18.3 N.m 115...480 V three phase
Motor Flange Size:
100 mm
Number Of Motor Poles:
4
Pvc Free:
Yes
Maximum Axial Force Fa:
160 N
Stator Resistance:
2.4 Ohm
Net Weight:
6.3 kg
Range Compatibility:
PacDrive 3
Rotor Inertia:
2.928 kg.cm²
Environmental Disclosure:
ENVPEP111049EN
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
X
Mounting Support:
international standard flange
Centring Collar Depth:
3.5 mm
Continuous Stall Torque:
5.8 N.m 115...480 V three phase
Device Short Name:
SH3.....P
Country of Origin:
United States
Maximum Current Irms:
17.1 A
Ip Degree Of Protection:
IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Shaft Diameter:
19 mm
Product Or Component Type:
servo motor
Circularity Profile:
N/A
Encoder Type:
absolute multiturn SinCos Hiperface
Circle Diameter Of The Mounting Holes:
115 mm
Nominal Output Power:
580 W 115 V single phase || 1090 W 230 V single phase || 1930 W 400 V three phase || 2210 W 480 V three phase
Holding Brake:
with
Continuous Power:
1900 W
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Radial Force Fr:
990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm
Shaft End:
smooth shaft
Rohs Exemption Information:
Yes
Phase:
three phase
Mounting Holes Diameter:
9.0 mm
Maximum Mechanical Speed:
6000 rpm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Type Of Cooling:
natural convection
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Number Of Mounting Holes:
4
Speed Feedback Resolution:
128 periods
