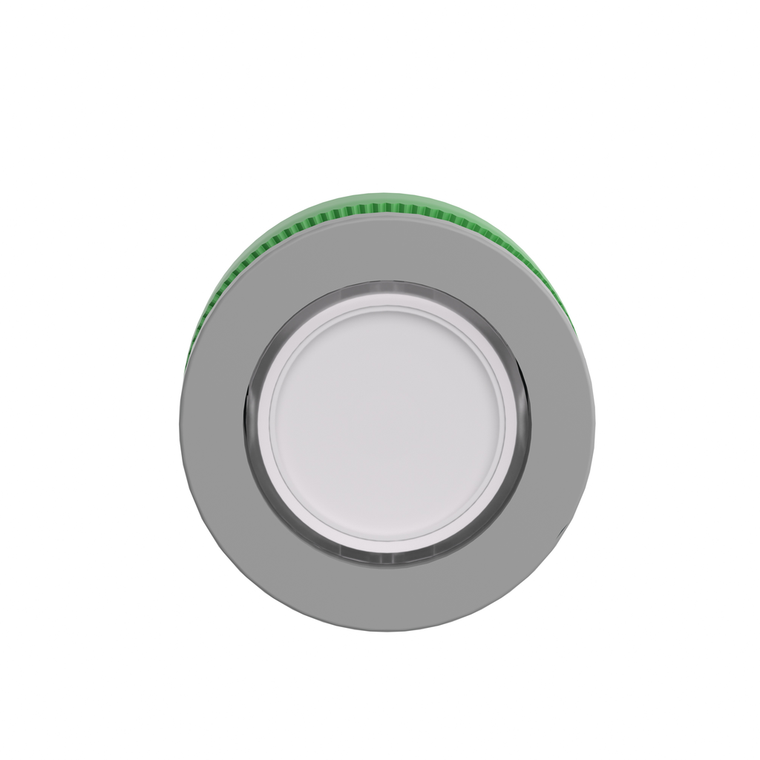

Schneider Electric ZB5FA18C0 Flmnt White Cap Pbhead-Legend Insertion
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Product Compatibility:
- universal LED
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Certifications:
- GL || DNV || UL Listed || BV || CSA || LROS (Lloyds register of shipping)
- Type Of Operator:
- spring return
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Marking:
- unmarked
- Shape Of Signaling Unit Head:
- round
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TC
- Operator Profile:
- white flush, unmarked
- Range Of Product:
- Harmony XB5
- Sale Per Indivisible Quantity:
- 1
- Mechanical Durability:
- 10000000 cycles
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 37 mm
- Main Group:
- illum push-button
- Mounting Diameter:
- 30.5 mm
- Cap/Operator Or Lens Colour:
- white
- Cad Overall Depth:
- 30 mm
- Group Of Product:
- flush push with inser of legend
- Cad Overall Width:
- 37 mm
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 s
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || GB 14048.5 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
- Net Weight:
- 0.017 kg
- Product Or Component Type:
- head for illuminated push-button
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Operator Additional Information:
- for insertion of legend
- Ambient Air Temperature For Operation:
- -40-70 °C
- Bezel Material:
- plastic colour plated grey
- Device Short Name:
- ZB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ik Degree Of Protection:
- IK03 EN 50102
- Device Presentation:
- basic element
- China Rohs Regulation:
- X
- Head Type:
- built-in-flush
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
