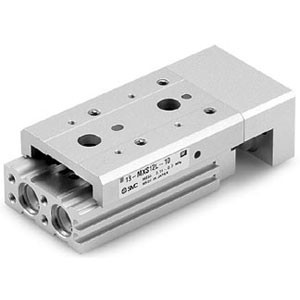

SMC 13-MXS20-40-M9PVSAPC | Clean Room Air Slide Table MXS Series 20mm Bore 40mm Stroke Complete Auto-Switch Assembly
SMC
$927.10
The SMC 13-MXS20-40-M9PVSAPC is a clean room specification air slide table from the MXS series with 20mm bore and complete auto-switch assembly. Part number decoded: MXS = MXS series, 20 = 20mm bore, 40 = 40mm stroke, M9PVSAPC = complete auto-switch assembly (M9P NPN with V voltage spec, S mount, A adjustment, PC pre-configured cable). The 20mm bore steps up from the 16mm, providing higher force output.
At 20mm bore, the MXS generates approximately 19N at 0.6 MPa through a 40mm guided stroke. The complete M9PV assembly provides plug-and-play PLC connectivity with voltage-specified NPN switches. The 40mm stroke at 20mm bore provides a compact, mid-force slide table for medium-duty clean room positioning, component transfer, and fixture actuation applications.
The MXS20-40-M9PVSAPC provides the 20mm bore complete assembly at 40mm stroke. For the TN non-rotating variant, the MXS20TN-30 provides enhanced anti-rotation. For longer strokes with complete assembly, the MXS20L-150A provides 150mm. For the MXQ comparison, the MXQ20-100A-M9PM provides recirculating ball guide slides. For smaller bore MXS, the MXS12 and MXS16 provide compact options. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 20mm
- Stroke:
- 40mm
- Auto-Switch:
- M9PVSAPC Complete Assembly (NPN)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
