Three phase set; with 185 mm high-current terminal block; only for DIN 35 x 15 rail; copper; 185 mm; POWER CAGE CLAMP
Electrical Data
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 12 kV
- Rated voltage (III / 3) 2: 1500 V
- Rated impulse voltage (III / 3) 2: 12 kV
Connection Data
- Connection technology: POWER CAGE CLAMP
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 185 mm
- Solid conductor: 50 185 mm / 1/0 AWG 350 kcmil
- Stranded conductor: 50 185 mm / 1/0 AWG 350 kcmil
- Fine-stranded conductor: 50 185 mm / 1/0 AWG 350 kcmil
- Fine-stranded conductor with ferrule with plastic collar: 50 150 mm / 1/0 AWG 250 kcmil
- Fine-stranded conductor with ferrule without plastic collar: 50 185 mm / 1/0 AWG 350 kcmil
- Strip length: 45 47 mm / 1.77 1.85 inch
- Total number of connection points: 10
- Total number of potentials: 5
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Height from upper-edge of DIN-35 rail: 116 mm / 4.567 inch
- Depth: 130 mm / 5.118 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Side marking
Material Data
- Color: gray, blue, green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.000 MJ
- Weight: 2764.950 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143074322
- Customs Tariff No.: 85369010000

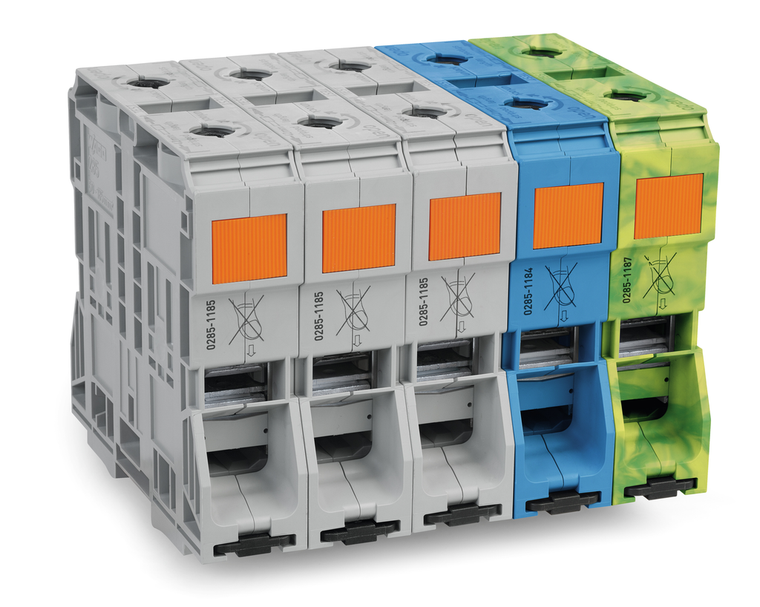

The WAGO 285 series terminal block is a three-phase feed-through unit with neutral and ground terminals, featuring a single deck and side marking slots. It comes in gray, blue, and green-yellow colors and supports 3 feed-through poles, a neutral, and a protective earth, accommodating 10 wires with 5 clamps each. Designed for conductors with a nominal cross-section of 185mm², it supports sizes from 50mm² to 185mm² or #1/0AWG to #350kcmil, both fine stranded and solid. Rated for a current of 353A, it uses POWER CAGE-CLAMP screw connections and mounts on a DIN-35 rail with a width of 160mm, equivalent to model 2851169.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- color:
- Gray, blue, green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- POWER CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 116 mm / 4.567 inch
- design:
- Horizontal type
- fine stranded conductor:
- 50 185 mm / 1/0 AWG 350 kcmil
- fine stranded conductor with insulated ferrule:
- 50 150 mm / 1/0 AWG 250 kcmil
- fine stranded conductor with uninsulated ferrule:
- 50 185 mm / 1/0 AWG 350 kcmil
- fire load:
- 17.614 MJ
- flammability class per ul94:
- V0
- height:
- 130 mm / 5.118 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 185 mm
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current csa use group b:
- 310 A
- rated current csa use group d:
- 310 A
- rated current ul use group b:
- 310 A
- rated current ul use group c:
- 310 A
- rated surge voltage iii 3:
- 12 kV
- rated surge voltage iii 3 2:
- 12 kV
- rated voltage csa use group b:
- 1000 V
- rated voltage csa use group c:
- 1000 V
- rated voltage iii 3 2:
- 1500 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Only on DIN 35 x 15 rail: 2.3 mm thick, copper
- safety information 2:
- Ground conductors up to max. 120 mm can be connected in compliance with IEC 60947-7-2.
- solid conductor:
- 50 185 mm / 1/0 AWG 350 kcmil
- stranded conductor:
- 50 185 mm / 1/0 AWG 350 kcmil
- strip length:
- 45 47 mm / 1.77 1.85 inch
- weight:
- 2764.950 g
- width:
- 160 mm / 6.299 inch
- wiring direction:
- Side-entry wiring
