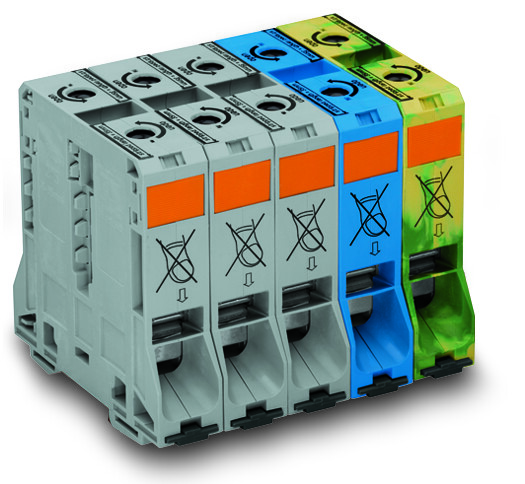

WAGO 285-199
- SKU:
- 285-199
- Condition:
- New
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- color:
- Gray, blue, green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- POWER CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 101 mm / 3.976 inch
- design:
- Horizontal type
- fine stranded conductor:
- 25 95 mm / 4 4/0 AWG
- fine stranded conductor with insulated ferrule:
- 25 95 mm / 4 4/0 AWG
- fine stranded conductor with uninsulated ferrule:
- 25 95 mm / 4 4/0 AWG
- fire load:
- 17.650 MJ
- flammability class per ul94:
- V0
- height:
- 107 mm / 4.213 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 1000 V
- packaging type:
- Box
- rated current csa use group b:
- 210 A
- rated current csa use group d:
- 210 A
- rated current ul use group b:
- 200 A
- rated current ul use group c:
- 200 A
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group c:
- 1000 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- safety information 1:
- Only on DIN 35 x 15 rail: 2.3 mm thick, copper
- solid conductor:
- 25 95 mm / 4 4/0 AWG
- stranded conductor:
- 25 95 mm / 4 4/0 AWG
- strip length:
- 35 mm / 1.38 inch
- weight:
- 1340.750 g
- width:
- 125 mm / 4.921 inch
- wiring direction:
- Side-entry wiring
Description
Three phase set; with 95 mm® high-current tbs; only for DIN 35 x 15 rail; copper; 95 mm®; POWER CAGE CLAMP
View AllClose
Electrical Data
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 8 kV
Connection Data
- Connection technology: POWER CAGE CLAMP
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 25 95 mm / 4 4/0 AWG
- Fine-stranded conductor: 25 95 mm / 4 4/0 AWG
- Strip length: 35 mm / 1.38 inch
- Total number of connection points: 10
- Total number of potentials: 5
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Height from upper-edge of DIN-35 rail: 101 mm / 3.976 inch
- Depth: 107 mm / 4.213 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Side marking
Material Data
- Color: gray, blue, green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.000 MJ
- Weight: 1340.750 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454204396
- Customs Tariff No.: 85369010000
