ABB AFS40-30-22-11 Afs40 Contactor: 3-Pole, 2NO/2NC, 24-60VAC/20-60VDC for Machine Safety Applications
ABB
$301.22

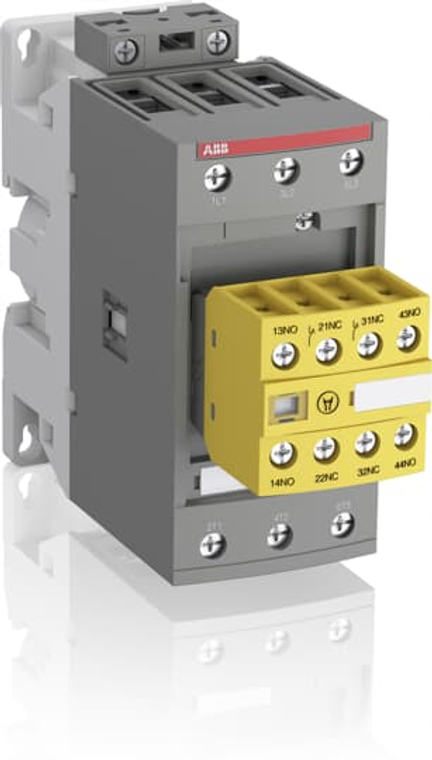

The ABB AFS40-30-22-11 Afs40 contactor is engineered for optimal performance in machine safety applications. It features a robust 3-pole design, capable of handling up to 690 V IEC or 600 V UL, making it suitable for controlling motors up to 18.5 kW at 400 V AC (AC-3) or 30 hp at 480 V UL. The contactor includes fixed front-mounted auxiliary contact blocks with 2 normally open and 2 normally closed contacts, ensuring reliable monitoring and control of circuits. Its electronic coil interface supports a wide control voltage range of 24-60 V AC and 20-60 V DC, reducing panel energy consumption and accommodating voltage fluctuations. The contactor is equipped with mirror and mechanically linked contacts, marked according to IEC60947-5-1 standards, to guarantee accurate contactor status. The yellow housing of the auxiliary contact block provides easy identification, while the built-in surge suppression enhances system protection. Designed to comply with EN ISO 13849 and EN 62061 standards, this contactor ensures the safe operation of machinery and equipment. Its block-type design allows for easy integration and expansion with additional auxiliary contact blocks and accessories, offering a versatile and compact solution for various industrial applications.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Spec Sheet:
- View
