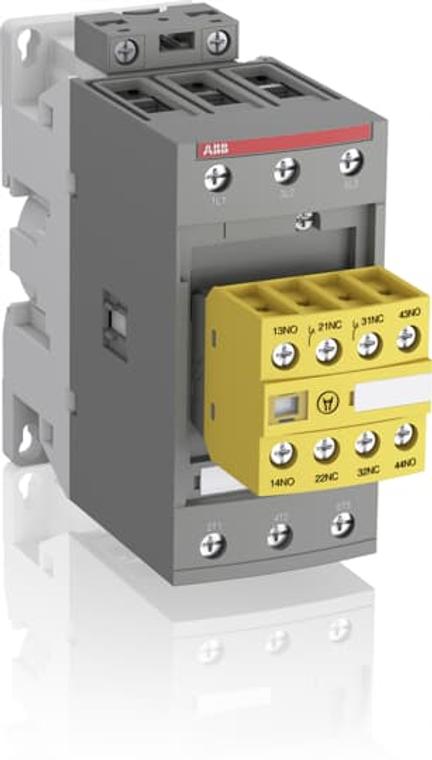

ABB AFS65-30-22-11 Afs65 Contactor - 3P, 2No2Nc, Wide Voltage Range, Enhanced Safety Features, IEC & UL Compliant

The ABB AFS65-30-22-11 Afs65 contactor is engineered for machine safety applications, featuring a robust design with fixed front-mounted auxiliary contact blocks for efficient circuit monitoring and control. It includes mechanically linked and mirror contacts, ensuring enhanced system safety. The contactor operates with an electronic coil interface, accommodating a wide control voltage range of 24...60 V AC and 20...60 V DC, as well as 100...250 V AC/DC, which reduces panel energy consumption. The front-mounted auxiliary contact block is permanently fixed and protected by a cover to prevent manual operation, with a distinctive yellow housing for easy identification. It offers a minimum switching capacity of 12 V / 3 mA, with a failure rate of 10^-7, adhering to IEC 60947-5-4 standards. The AFS65-30-22-11 is a 3-pole contactor, suitable for controlling motors up to 30 kW / 400 V AC or 50 hp / 480 V UL, and switching power circuits up to 105 A (AC-1) or 90 A UL general use. It integrates seamlessly into machine manufacturers' systems, complying with EN ISO 13849 and EN 62061 standards, ensuring the safe operation of machinery and equipment. The contactor's AF technology allows for a wide control voltage range, managing large voltage variations and ensuring reliable operations even in unstable networks. Built-in surge protection offers a compact and efficient solution, while the block-type design allows for easy extension with add-on auxiliary contact blocks and a wide range of accessories.
