Description
Overview
Abb
Pilot Lights, Cl2 Series

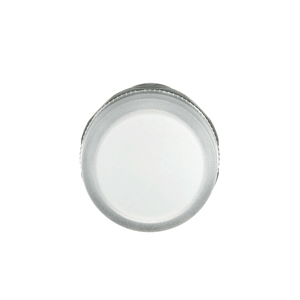

Item# Cl2-501G - Pilot Light, Grn, 12Vdc
Cl2 Series Information
- 22Mm Mounting Size
- Full Voltage Leds
- Finger-Safe Screw Terminals
- Ip67; Ip69K
- Ul; Csa; Iec Approvals
With The Next Generation Of Products, A New, More Environmentally Friendly Polymer Is Used Thus
Helping Saving The Natural Resources. Additionally The Protection Against Leakage Current Has Been
Improved And The Size Has Been Reduced By 3 Mm Compared To The Previous Generation As The
Built-In Depth Has Been Optimized. Similar To The Rest Of Abb S Compact Range, The New Line Of Pilot
Lights Has The Highest Ip Ratings, Both Ip67 And Ip69K, And Is Therefore Functional In The Toughest
Environments.
- Reliable And Durable Design
- Fast Mounting
- Low Built-In Depth
Specifications
Item Number: &Nbsp;
Cl2-501G
Upc: &Nbsp;
888614469945
Brand:
Abb
Item Category:
Pilot Lights
Series:
Cl2
Push-To-Test:
No
Mounting Size (Mm):
22 Millimeters
Nominal Lamp Voltage:
12 Vdc
Lens Color:
Green
Lens Shape:
Flat Round
Lamp Type:
Led
Illumination Circuit:
Full Voltage
Terminal Type:
Screw
Depth Behind Panel:
1.54 Inches
Iec Rating:
Ip66;Ip67;Ip69K
Approvals:
Ul;Ce
