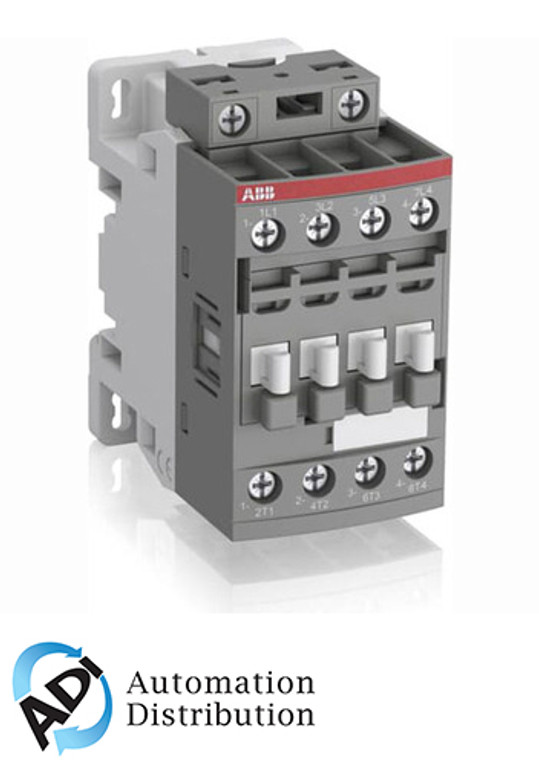

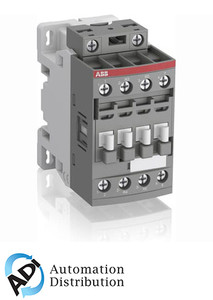

ABB AF09-40-00-12 af09 4p contr, 48-130vac/dc

ABB AF09-40-00-12 af09 4p contr, 48-130vac/dc

ABB
SKU:
AF09-40-00-12
|
UPC:
3471523115026
$72.26
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

Overview

Abb

Ac Non-Reversing Iec Contactors, Star Series

Item# Af09-40-00-12 - Contactor, 4-P N/O, 48-130Vac/Dc Coil, No Aux Contacts

Star Series Information
  • Af Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change
  • The Built-In N.C. Auxiliary Contact Is A Mirror Contact In Compliance With Annex F Of Iec 60947-4-1
  • Af Contactors Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors
  • Only Four Coils Cover Control Voltages Between 24-500 V 50/60 Hz Or 20-500 V Dc
  • Electronic Coil Interface Accepts A Wide Control Voltage Range
Af09- Af30 Contactors Are Used For Controlling Power Circuits Up To 600 V Ac And 240 V Dc. They Are Mainly Used For Controlling 3-Phase Motors, Non-Inductive Or Slightly Inductive Loads.

Specifications

Item Number: &Nbsp;
Af09-40-00-12
Upc: &Nbsp;
804325538947
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Star
Coil Voltage:
48~130 Vac/48~130 Vdc
Coil Type:
Electronic
Poles:
4No
Auxiliary Contacts:
None
Termination:
Screw
General Purpose (Ac1):
25 Amps
Approvals:
Culus
&Nbsp;&Nbsp;Net Weight:
9.12 Oz
&Nbsp;&Nbsp;Gross Weight:
9.1172 Oz
