Abb
Ac Non-Reversing Iec Contactors, Star Z Series

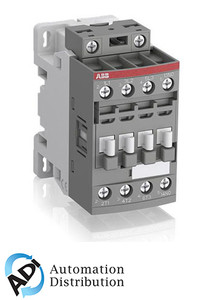

Item# Af09Z-30-01-23 - Contactor, 3-P N/O, 100-250Vac/Dc Coil, Includes 1Nc Aux Contact, Low Power Coil
Star Z Series Information
- Af Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change
- Afz Contactors Allow Direct Control By Plc-Output Greater Than 24 Vdc 500 Ma And Obtain Reduced Holding Coil Consumption
- Electronic Coil Interface Accepts A Wide Control Voltage Range And Manages Large Control Voltage Variations
- The Built-In N.C. Auxiliary Contact Is A Mirror Contact In Compliance With Annex F Of Iec 60947-4-1
- Af Contactors Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors
- Afz Contactors Withstand Short Dips And Voltage Interruptions (Semi F47-0706 Compliance)
- Only Four Coils Cover Control Voltages Between 24-500 V 50/60 Hz Or 20-500 V Dc
Specifications
Item Number: &Nbsp;
Af09Z-30-01-23
Upc: &Nbsp;
804325538374
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Star Z
Coil Voltage:
100~250 Vac/100~250 Vdc
Coil Type:
Electronic
Poles:
3No
Auxiliary Contacts:
1Nc
Termination:
Screw
General Purpose (Ac1):
25 Amps
Ul Motor Switching (Ac3):
9 Amps
Max Hp 115V 1Ph:
0.75 Horsepower
Max Hp 230/240V 1Ph:
1.5 Horsepower
Max Hp 230/240V 3Ph:
2 Horsepower
Max Hp 460/480V 3Ph:
5 Horsepower
Max Hp 575/600V 3Ph:
7.5 Horsepower
Approvals:
Culus
&Nbsp;&Nbsp;Net Weight:
1 Lb
&Nbsp;&Nbsp;Gross Weight:
1 Lb
