ABB

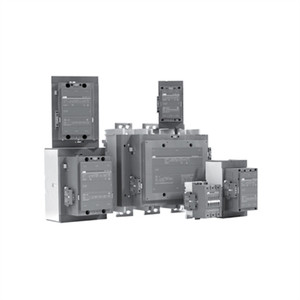

AC Non-Reversing NEMA Contactors, STAR Series
Item# AF12N0-30-10-14 - NEMA,SZ0,250-500VAC/DC,1NO
STAR Series Information
- AF Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used for Different Control Voltages Used Worldwide without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is a Mirror Contact in Compliance with Annex F of IEC 60947-4-1
- AF Contactors Have Built-In Surge Protection and Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages between 24-500 V 50/60 Hz or 20-500 V DC
- Electronic Coil Interface Accepts a Wide Control Voltage Range
Specifications
Item Number:
AF12N0-30-10-14
UPC:
804325725019
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Non-Reversing NEMA
Series:
STAR
Coil Voltage:
250500VACVDC
Nominal Coil Voltage:
277 VAC;480 VAC
Coil Type:
Electronic
Poles:
3NO
NEMA Frame Size:
0
Auxiliary Contacts:
1NO
Termination:
Screw
NEMA Continuous Amps (I):
18 Amps
Max HP 200/208V 3PH:
3 Horsepower
Max HP 230/240V 3PH:
3 Horsepower
Max HP 460/480V 3PH:
5 Horsepower
Max HP 575/600V 3PH:
5 Horsepower
Approvals:
cULus
Net Weight:
1 lb
