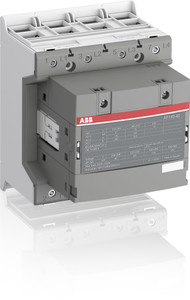

ABB AF140R-30-22-12 ab af140r302212 rev. cont,3 pole,12

(No reviews yet) Write a Review
SKU:
AF140R-30-22-12
MPN:
AF140R-30-22-12
Condition:
New
QN-QUOTE-REQUEST:
true
$2,450.57

Description

Overview

ABB

AC Reversing IEC Contactors, AF Series

Item# AF140R-30-22-12 - REV. CONT 3 POLE 125HP 600VAC

AF Series Information
  • AC or DC Operated Control Circuit with Electronic Coil Interface Accepting a Wide Control Voltage Range - Only 4 Control Voltage Ranges Covering 24 to 500 VAC 50/60 Hz and 20 to 500 VDC
  • Add-on Auxiliary Contact Blocks for Front or Side Mounting and a Wide Range of Accessories
  • Can Manage Large Control Voltage Variations
  • Reduced Panel Energy Consumption
  • Very Distinct Closing and Opening.
  • Built-in Surge Suppression
AF reversing contactors are mainly used for directionally controlling 3-phase motor circuits up to 690V AC. These devices include two 3-pole contactors, a mechanical interlock, side-mounted auxiliary contacts for electrical interlocking, power bus (see diagram to the left), and are assembled using fixing clips or back mounting plate.

Specifications

Item Number:
AF140R-30-22-12
UPC:
888614067295
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Reversing IEC
Series:
AF
Nominal Coil Voltage:
48 VAC;120 VAC;48 VDC;120 VDC
Coil Voltage:
48~130 VAC/VDC
Coil Type:
Magnetic
Poles:
3NO
Auxiliary Contacts:
2NO; 2NC
Termination:
Box Lug
Max HP 200/208V 3PH:
40 Horsepower
Max HP 230/240V 3PH:
50 Horsepower
Max HP 460/480V 3PH:
100 Horsepower
Max HP 575/600V 3PH:
125 Horsepower
General Purpose (AC1):
200 Amps
UL Motor Switching (AC3):
140 Amps
