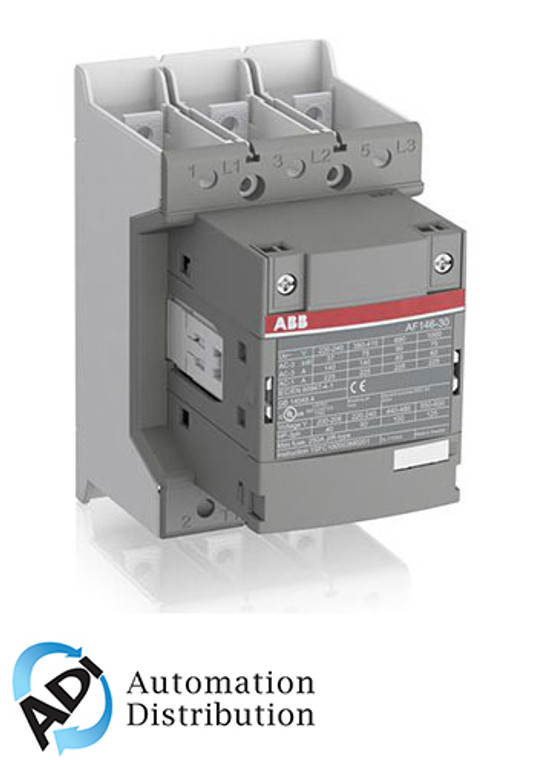

ABB AF146-30-00B-12 AC Non-Reversing IEC Contactor, 130A, 3-Pole, 48-130V AC/DC, Box Lug Termination
ABB
$732.45
The ABB AF146-30-00B-12 is a robust AC non-reversing IEC contactor from the AF series, designed to handle demanding applications. This model features a three-pole configuration and can manage up to 130A with a coil voltage range of 48-130V AC/DC. It is equipped with a magnetic coil type and does not include auxiliary contacts. The contactor offers a box lug termination for secure and reliable connections.
With a general purpose (AC1) rating of 225 amps and a UL motor switching (AC3) capacity of 146 amps, this contactor is capable of controlling motors up to 125 horsepower at 575/600V in a three-phase setup. It also supports motor sizes of 40 HP at 200/208V, 50 HP at 230/240V, and 100 HP at 460/480V, making it versatile for various industrial applications.
The unit measures 5.91 inches in height, 3.54 inches in width, and 4.96 inches in depth, and weighs approximately 3 pounds and 5 ounces. This contactor is ideal for users seeking a high-performance solution for motor control and power switching in industrial environments.
