Description
Overview
Abb
Ac Non-Reversing Iec Contactors, Af Series

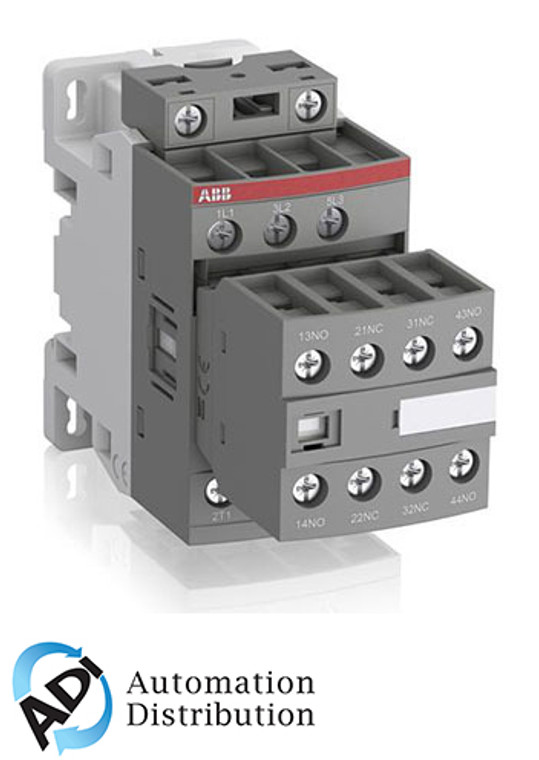

Item# Af16Z-30-22-20
Contactor, 3-P N/O, 12-20Vdc Coil, Includes 2No &Amp; 2Nc Aux Contacts, Low Power Coil
Specifications
Item Number: &Nbsp;
Af16Z-30-22-20
Upc: &Nbsp;
8886141318810
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
12~20 Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
2No; 2Nc
Termination:
Screw
General Purpose (Ac1):
30 Amps
Ul Motor Switching (Ac3):
18 Amps
Max Hp 200/208V 3Ph:
5 Horsepower
Max Hp 230/240V 3Ph:
5 Horsepower
Max Hp 460/480V 3Ph:
10 Horsepower
Max Hp 575/600V 3Ph:
15 Horsepower
H X W X D:
3.15 In X 1.77 In X 3.03 In
&Nbsp;&Nbsp;Net Weight:
10.93 Oz
