ABB

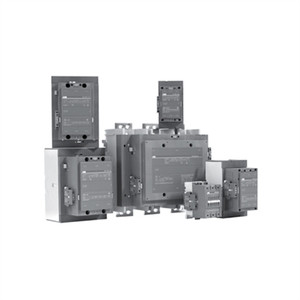

AC Non-Reversing NEMA Contactors, STAR Series
Item# AF265N5-30-11-11 - NEMA SZ5 20-60VDC/24-60VAC 1/1
STAR Series Information
- AF Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used for Different Control Voltages Used Worldwide without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is a Mirror Contact in Compliance with Annex F of IEC 60947-4-1
- AF Contactors Have Built-In Surge Protection and Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages between 24-500 V 50/60 Hz or 20-500 V DC
- Electronic Coil Interface Accepts a Wide Control Voltage Range
Specifications
Item Number:
AF265N5-30-11-11
UPC:
888614183797
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Non-Reversing NEMA
Series:
STAR
Coil Voltage:
24~60 VAC/VDC
Nominal Coil Voltage:
24 VAC;60 VAC;24 VDC;48 VDC;60 VDC
Coil Type:
Magnetic
Poles:
3NO
NEMA Frame Size:
5
Auxiliary Contacts:
1NO; 1NC
Termination:
Box Lug
NEMA Continuous Amps (I):
270 Amps
Max HP 230/240V 3PH:
100 Horsepower
Max HP 460/480V 3PH:
200 Horsepower
Max HP 575/600V 3PH:
200 Horsepower
H x W x D:
8.86 in x 5.51 in x 7.09 in
