Description
Overview
ABB

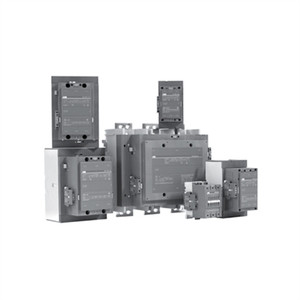

AC Non-Reversing NEMA Contactors, STAR Series
Item# AF26N1-30-00-13 - Contactor, 100-250VAC/DC Size 1
STAR Series Information
- AF Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used for Different Control Voltages Used Worldwide without Any Coil Change
- The Built-In N.C. Auxiliary Contact Is a Mirror Contact in Compliance with Annex F of IEC 60947-4-1
- AF Contactors Have Built-In Surge Protection and Do Not Require Additional Surge Suppressors
- Only Four Coils Cover Control Voltages between 24-500 V 50/60 Hz or 20-500 V DC
- Electronic Coil Interface Accepts a Wide Control Voltage Range
Specifications
Item Number:
AF26N1-30-00-13
UPC:
804325725088
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Non-Reversing NEMA
Series:
STAR
Coil Voltage:
100250VAC100250VDC
Nominal Coil Voltage:
120 VAC;240 VAC;120 VDC
Coil Type:
Electronic
Poles:
3NO
NEMA Frame Size:
1
Auxiliary Contacts:
None
Termination:
Screw
NEMA Continuous Amps (I):
27 Amps
Max HP 200/208V 3PH:
7.5 Horsepower
Max HP 230/240V 3PH:
7.5 Horsepower
Max HP 460/480V 3PH:
10 Horsepower
Max HP 575/600V 3PH:
10 Horsepower
Approvals:
cULus
H x W x D:
3.4 in x 1.75 in x 3.35 in
Net Weight:
11.44 OZ
Gross Weight:
11.92 OZ
