Description
Overview
ABB

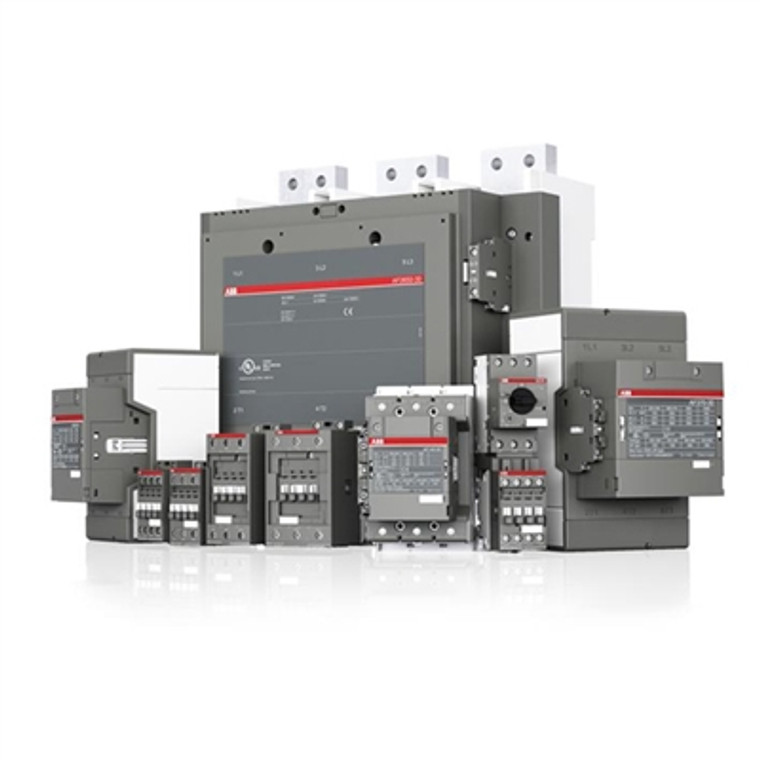

AC Mechanically Interlocked IEC Contactors, A Series
Item# AF580M-30-11-70 - Contactor, 3-P N/O,
A Series Information
- 24~600 VAC/VDC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1650 Amps
- 3 or 4 Poles
- Touch Safe Design
- Easy Maintenance of Contacts and Coil Inspection
Specifications
Item Number:
AF580M-30-11-70
UPC:
662019098197
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Mechanically Interlocked IEC
Series:
A
Nominal Coil Voltage:
120 VAC;208 VAC;240 VAC;120 VDC;240 VDC
Coil Voltage:
100250VACVDC
Coil Type:
Magnetic
Poles:
3NO
Frame Size:
AF580M
Auxiliary Contacts:
1NO; 1NC
Termination:
Box Lug
Overload Relays:
E800DU
Max HP 200/208V 3PH:
200 Horsepower
Max HP 230/240V 3PH:
250 Horsepower
Max HP 460/480V 3PH:
500 Horsepower
Max HP 575/600V 3PH:
600 Horsepower
General Purpose (AC1):
750 Amps
UL Motor Switching (AC3):
602 Amps
H x W x D:
14.05 in x 17.7 in x 9.53 in
Net Weight:
1 lb
Gross Weight:
1 lb
