Abb
Ac Non-Reversing Iec Contactors, Af Series

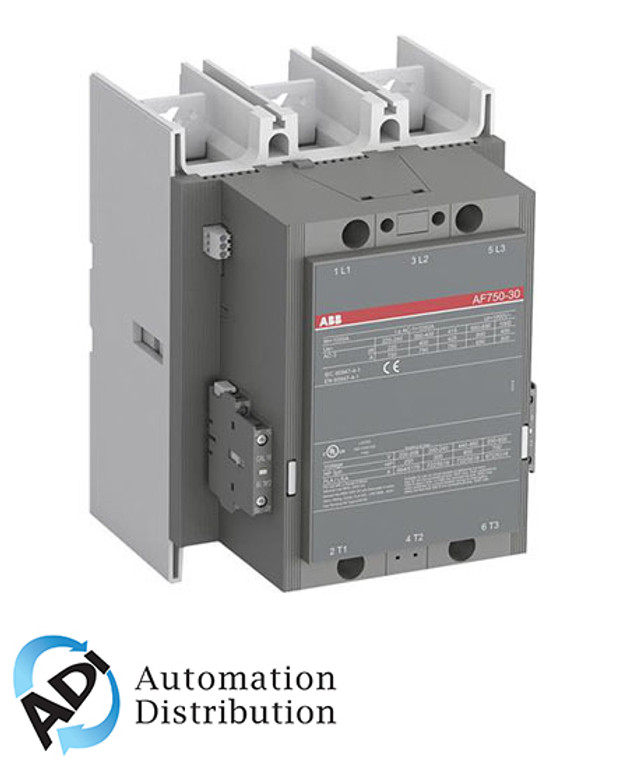

Item# Af750-30-22-71
Contactor, 3-P N/O, 200-500Vac/Dc Coil, Includes 2No &Amp; 2Nc Auxiliary Contacts
Specifications
Item Number: &Nbsp;
Af750-30-22-71
Upc: &Nbsp;
8043253174510
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
250~500 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
2No; 2Nc
Termination:
Box Lug
General Purpose (Ac1):
1,050 Amps
Ul Motor Switching (Ac3):
750 Amps
Max Hp 200/208V 3Ph:
250 Horsepower
Max Hp 230/240V 3Ph:
300 Horsepower
Max Hp 460/480V 3Ph:
600 Horsepower
Max Hp 575/600V 3Ph:
700 Horsepower
H X W X D:
11.14 In X 8.27 In X 9.53 In
&Nbsp;&Nbsp;Net Weight:
33 Lb 1 Oz
&Nbsp;&Nbsp;Gross Weight:
35 Lb
