Description
Overview
Abb

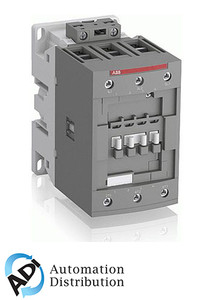

Ac Non-Reversing Iec Contactors, Af Series
Item# Af80-30-22-14
Ctr,3P,80A,250-500Vac/Dc,1/1
Specifications
Item Number: &Nbsp;
Af80-30-22-14
Upc: &Nbsp;
888614134997
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
250~500 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
2No; 2Nc
Termination:
Screw
General Purpose (Ac1):
125 Amps
Ul Motor Switching (Ac3):
80 Amps
Max Hp 200/208V 3Ph:
25 Horsepower
Max Hp 230/240V 3Ph:
30 Horsepower
Max Hp 460/480V 3Ph:
60 Horsepower
Max Hp 575/600V 3Ph:
75 Horsepower
H X W X D:
4.94 In X 2.76 In X 4.57 In
&Nbsp;&Nbsp;Net Weight:
2 Lb 9 Oz
