Abb
Definite Purpose Contactors, Dp Series

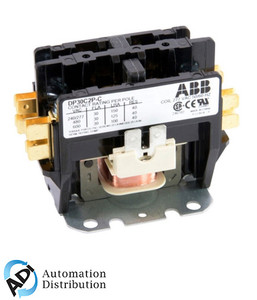

Item# Dp30C2P-1 - Dp Contactor, 2-P N/O, 120Vac, 30A
Dp Series Information
- 24~575 Vac Coils
- Up To 25 Hp @ 240V
- Up To 30 Hp @ 480V
- Ul; Ce; Iec Agency Approvals
- Up To 75 Amps
- 1 To 4 Poles
- Double E Magnet Assembly
- Class B Coil
- Dual And Quad Quick Connects
Specifications
Item Number: &Nbsp;
Dp30C2P-1
Upc: &Nbsp;
662019749464
Brand:
Abb
Item Category:
Contactors
Subcategory:
Definite Purpose
Series:
Dp
Poles:
2 No
Nominal Coil Voltage:
120 Vac
Coil Voltage:
120 Vac
Inductive Current Rating:
30 Amps
Enclosure:
Open
Termination:
Box Lug;Quick Connect
Max Hp 120V 1 Ph:
2 Horsepower
Max Hp 230/240V 1Ph:
3 Horsepower
Locked Rotor 240/277V:
150 Amps
Locked Rotor 480V:
125 Amps
Locked Rotor 600V:
100 Amps
Inductive Load 120V:
30 Amps
Inductive Load 200/208V:
30 Amps
Inductive Load 230/240V:
30 Amps
Inductive Load 460/480V:
30 Amps
Inductive Load 575/600V:
30 Amps
Resistive Rating:
40 Amps
Coil Type:
Magnetic
Frame Size:
30
Shunt:
No
Din Mounting:
No
Approvals:
Ul;Csa
H X W X D:
2.45 In X 3 In X 2.1 In
&Nbsp;&Nbsp;Net Weight:
9.76 Oz
&Nbsp;&Nbsp;Gross Weight:
9.7522 Oz
