Description
Overview
ABB

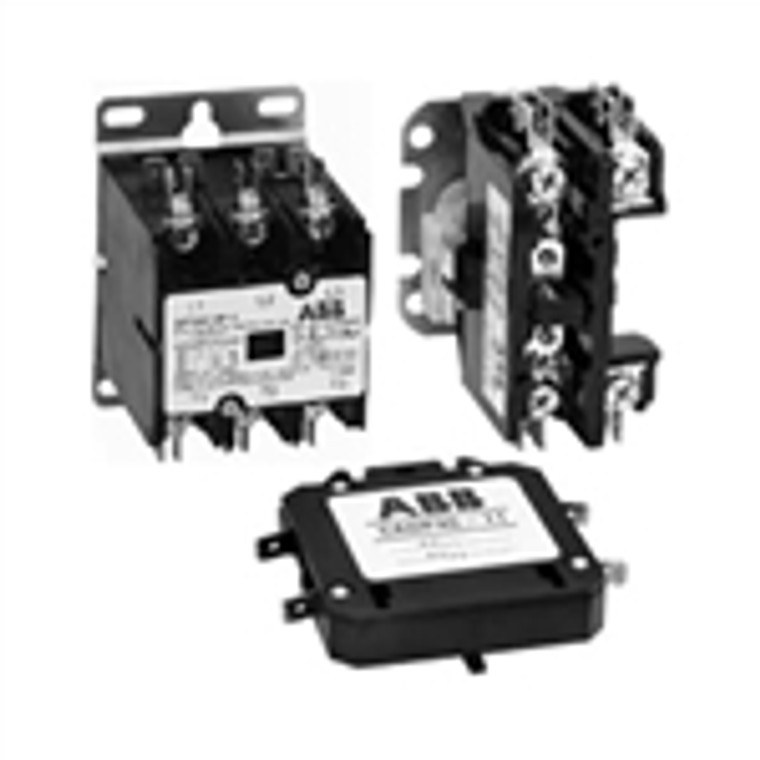

Definite Purpose Contactors, DP Series
Item# DP60C3P-C - Contactor, 3-P N/O, 277VAC, 60A Definite Purpose, Open 75A Resistive
DP Series Information
- 24~575 VAC Coils
- Up to 25 HP @ 240V
- Up to 30 HP @ 480V
- UL; CE; IEC Agency Approvals
- Up to 75 Amps
- 1 to 4 Poles
- Double E Magnet Assembly
- Class B Coil
- Dual and Quad Quick Connects
Specifications
Item Number:
DP60C3P-C
UPC:
662019755694
Brand:
ABB
Item Category:
Contactors
Subcategory:
Definite Purpose
Series:
DP
Poles:
3 NO
Nominal Coil Voltage:
277 VAC
Coil Voltage:
277 VAC
Inductive Current Rating:
60 Amps
Enclosure:
Open
Termination:
Box Lug;Quick Connect
Max HP 200/208V 3 PH:
25 Horsepower
Max HP 230/240V 3PH:
25 Horsepower
Max HP 460/480V 3 PH:
30 Horsepower
Max HP 575/600V 3PH:
30 Horsepower
Max HP 120V 1 PH:
2 Horsepower
Max HP 230/240V 1PH:
10 Horsepower
Locked Rotor 240/277V:
360 Amps
Locked Rotor 480V:
300 Amps
Locked Rotor 600V:
240 Amps
Inductive Load 120V:
60 Amps
Inductive Load 200/208V:
60 Amps
Inductive Load 230/240V:
60 Amps
Inductive Load 460/480V:
60 Amps
Inductive Load 575/600V:
60 Amps
Resistive Rating:
75 Amps
Coil Type:
Magnetic
Frame Size:
60
Shunt:
No
DIN Mounting:
No
Approvals:
UL;CSA
H x W x D:
4 in x 2.75 in x 3.13 in
Net Weight:
1 lb 10 oz
Gross Weight:
1 lb 10 oz
