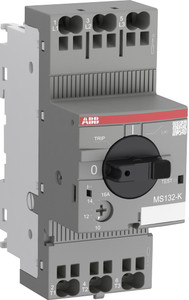

ABB MS132-0.4K 3P Manual Motor Starter with 0.25-0.4A Range and Push-in Spring Terminals
ABB
$164.15
The ABB MS132-0.4K 3P Mmp Pi 0.25-0.4A Range is a versatile manual motor starter designed for efficient motor control and protection. With a compact 45 mm width, it features a rated operational current of 0.40 A and utilizes Push-in spring terminals for easy installation. This device ensures reliable protection against short-circuits, overloads, and phase failures without the need for additional fuses. It boasts a rated service short-circuit breaking capacity of 100 kA at 400 VAC and adheres to trip class 10 standards. The MS132-K model includes a built-in disconnect function, temperature compensation, and a trip-free mechanism, all controlled by a rotary handle with clear switch position indication. Suitable for both three- and single-phase applications, the handle can be locked to prevent unauthorized adjustments. Enhance its functionality with optional accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, and terminal spacers.
