ABB OS200J13 ab os200j13

Overview

ABB

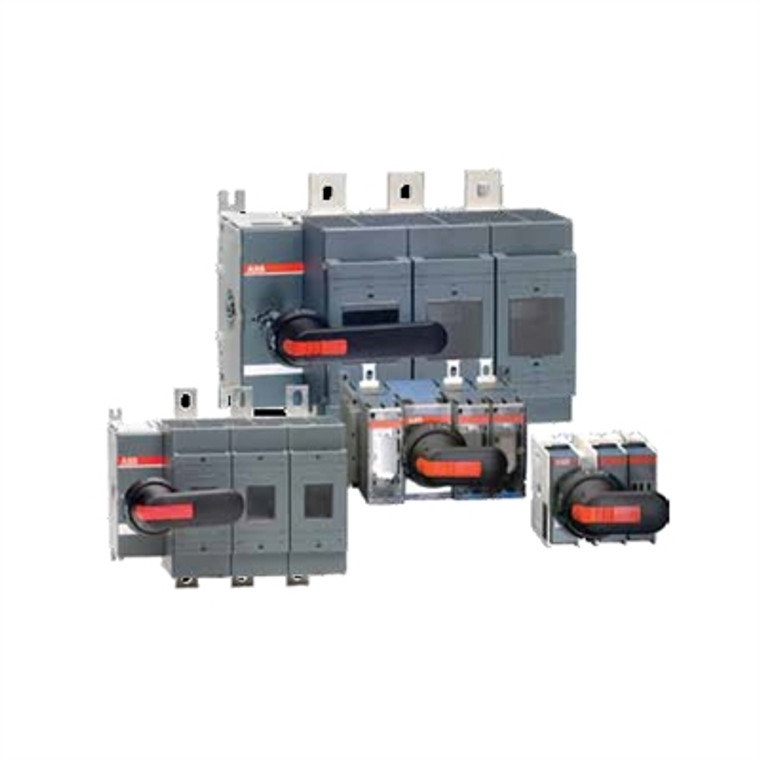

Open Disconnects, POWERLINE Series

Item# OS200J13 - Disconnect Switch, 4-P, 200A/600V, Fusible, Accepts Class J Fuses (Not Included)

• Wide Range of International Fuse Clip Options Available
• Rotary Through-Door, Flange Mounted, or Motorized Operation
• Fuses Completely Isolated in OFF Position
• Many Accessory Options to Fit to Your Application
• 2 to 8 Poles, 30A-800A Options

ABB PowerLine includes seven different amperage sizes from 30A to 800A. All PowerLine fusible switches are designed to meet customer requirements in terms of high interrupting capacity and long electrical life while occupying little more panel space than the appropriate fuses. The basic construction provides flexibility and high performance in an extremely compact size. ABB PowerLine switches are a perfect choice to withstand the heat and humidity of the tropics, the extreme cold of the arctic and any rugged industrial environment you may have. PowerLine fusible disconnects are available in 2,3,4,6, and 8 pole versions. They come in a wide range of fuse clip options: UL, CSA, DIN, BS, NFC, and Ultra-Rapid.
Safety Features include:

• UL/CSA and/or IEC approval ratings
• High-Performance Quick-Make/Quick-Break Mechanism
• Door Interlock
• Full Fuse Isolation in OFF Position
• Padlockable Handles

Specifications
