Name: ABB S201M-B16 ab s201mb16
Brand: ABB
SKU: S201M-B16
Price: 57.37 USD
Availability: InStock

ABB S201M-B16 ab s201mb16

(No reviews yet) Write a Review

SKU:

S201M-B16

MPN:

S201M-B16

Condition:

New

Description

Description

Overview

ABB

Miniature Circuit Breakers, S200M Series

Item# S201M-B16 - Circuit Breaker, 1-P, 16A/277VAC, B, 6KAIC, UL1077 Recognized

S200M Series Information

B, C, D, K, Z Trip Characteristics
0.5 to 63 Amps
DIN Rail Mount
Bottom Fitting Auxiliary Contact

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in B,C,D,K,Z characteristics, configurations 1P,1P+N,2P,3P,3P+N,4P, breaking capacities up to 10 kA at 230/400 V AC and rated currents up to 63A. All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.

Specifications

Item Number:

S201M-B16

UPC:

8043256132010

Brand:

ABB

Item Category:

Circuit Breakers

Subcategory:

Miniature

Series:

S200M

Poles:

Amps:

UL Standard:

1077

Trip Curve:

Terminal Type:

Screw

Max Voltage:

480 VAC;60 VDC

Shunt Trip:

Optional

Protection:

Supplemental

Auxiliary Switch:

Optional

Undervoltage Release:

Optional

Terminals Included:

Line / Load

Trip Unit:

Fixed Thermal / Fixed Magnetic

Mounting:

DIN Rail

Neutral Pole:

CSA Standard:

22.2

IEC Standard:

60898, 60947-2

kAIC @ 277/480 VAC:

kAIC @ 60 VDC:

Alarm Switch:

Optional

Busbar:

Optional

Approvals:

UL;CSA

H x W x D:

3.46 in x .69 in x 2.72 in

Net Weight:

4.4092 OZ

Gross Weight:

4.568 OZ

View AllClose

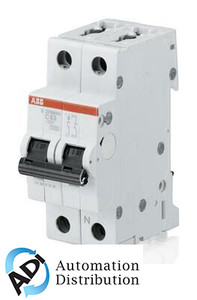

ABB S201M-B16NA ab s201mb16na

ABB

$106.54

Overview ABB Miniature Circuit Breakers, S200M Series Item# S201M-B16NA - Circuit Breaker, 1-P+N, 16A/277VAC, B, 6KAIC, UL1077 Recognized

S201M-B16NA

ABB S201M-C63 ab s201mc63

ABB

$136.59

Overview ABB Miniature Circuit Breakers, S200M Series Item# S201M-C63 - Circuit Breaker, 1-P, 63A/277VAC, C, 6KAIC, UL1077 Recognized, DIN Mount

S201M-C63

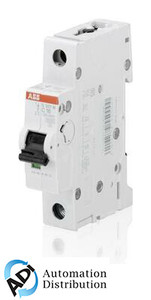

ABB S201M-C1 ab s201mc1
